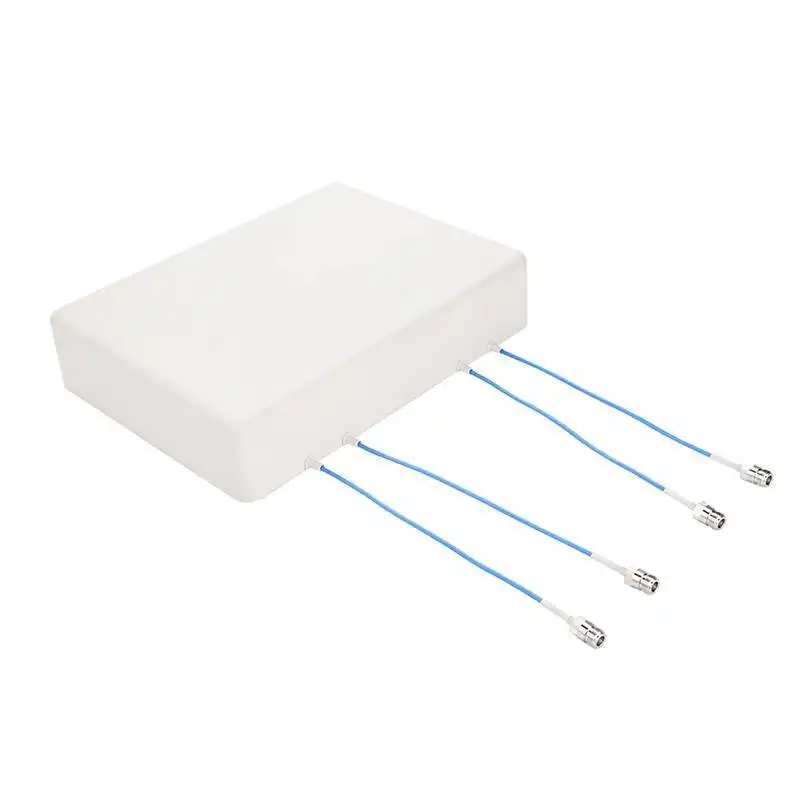

AMPLITEC MIMO Directional Panel Antenna OP0738-0865-4N Low loss
Used in 2G/3G/4G/5G system
|
Frequency range (MHz) |
698～960 |
1710～2700 |
3300～3800 |
|
Polarization |
±45° |
||
|
Gain (dBi) |
6 ± 1 |
8 ± 1 |
8 ± 1 |
|
Horizontal beam width |
80 ± 15 |
60 ± 15 |
65 ± 15 |
|
Vertical beam width (°) |
75 |
55 |
40 |
|
Front-to-back ratio (dB) |
≥ 20 |
≥ 25 |
≥ 20 |
|
Cross-polar discrimination (dB) |
/ |
||
|
Isolation (dB) |
≥ 18 |
≥ 20 |
≥ 25 |
|
Impedance (Ω) |
50 |
||
|
VSWR |
≤ 1.8 |
||
|
Intermodulation IM3 (2×43dBm carrier) |
≤ -150 dBc |
||
|
Maximum power (W) |
50 |
||
|
Lighting protection |
DC Ground |
||
698～960MHz: ±45° Pol. 1710～2700MHz: ±45° Pol. 3300～3800MHz: ±45° Pol.
