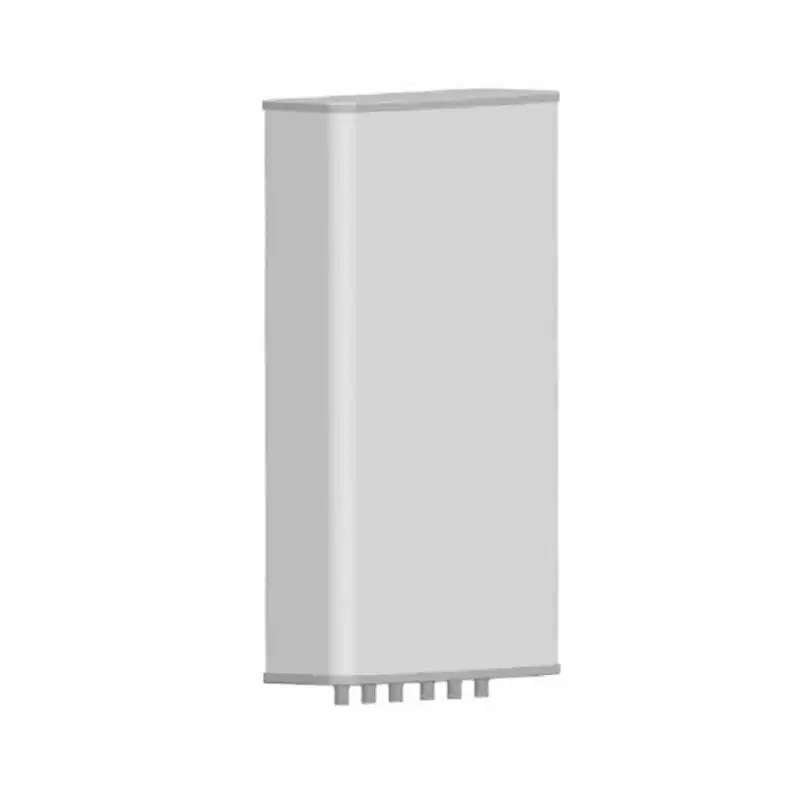

AMPLITEC Fixed Electrical Downtilt Stadium MIMO Antenna OP0738-1333
|
Electrical specifications |
||
|
Port |
Port *2 |
Port *4 |
|
Frequency range (MHz) |
698-960 &1710-2690 |
2500-3800 |
|
Polarization |
±45° |
|
|
Gain (dBi) |
13±1 |
13±1 |
|
Electrical Downtilt (°) |
0 |
|
|
Horizontal power beam width (°) |
33±10 |
33±10 |
|
Vertical power beam width (°) |
30±10 |
30±10 |
|
1st Uppersidelobe suppression(dB) |
≥15 |
≥15 |
|
Front-to-back ratio (dB) |
≥22 |
≥22 |
|
Cross-polar discrimination (dB) |
≥15 |
|
|
Isolation (dB) |
≥25 |
≥25 |
|
Impedance (Ω) |
50 |
|
|
VSWR |
≤1.5 |
|
|
Intermodulation IM3 (2×43dBm carrier) |
≤-150dBc |
/ |
|
Maximum power (W) |
100 |
|
|
Ground protection |
DC Grounding |
|
698-960MHz: ±45° Pol. 1710-2690MHz: ±45° Pol. 2500-3800MHz: ±45° Pol.
