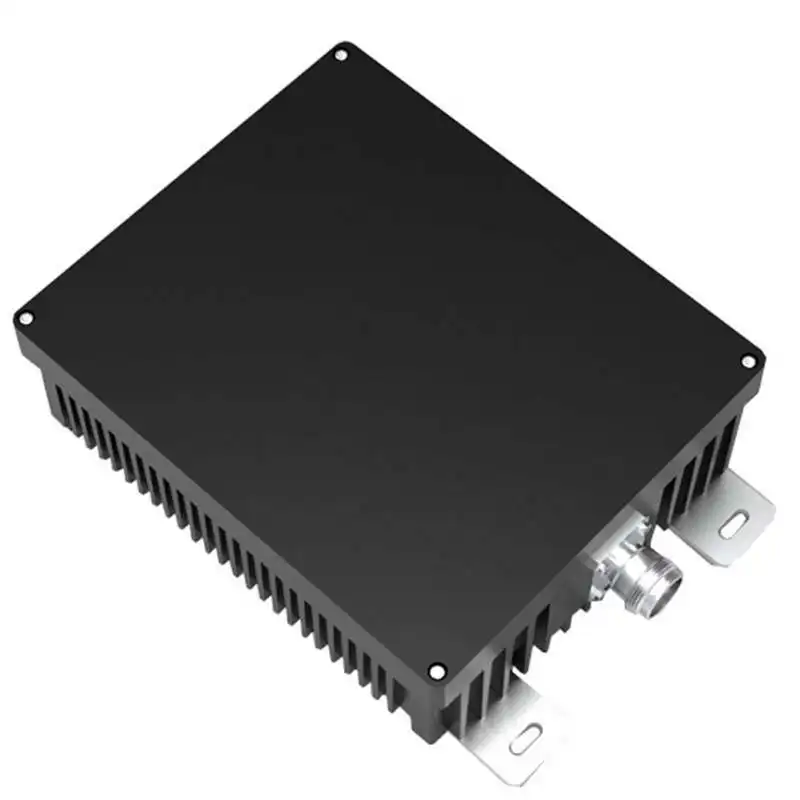

AMPLITEC FZDC60-D-100B Low loss
* Wide-band design, cover DC-6000MHz
* Low PIM
* Compact size, light weight
|
Model Name |
FZDC60-D-100B |
|
Frequency Range (MHz) |
DC-6000 |
|
VSWR |
≤1.25 |
|
PIM(dBc) |
≤-160@@ 2×37dBm |
|
Impedance(Ω) |
50 |
|
Power Handling(W) |
100,Avg |
|
Mechanical Specifications |
|
|
Dimension (L×W×H, excl connector) (mm) |
180×150×62 |
|
Weight (including connectors and mounting bracket) (kg) |
1.9 |
|
Connector Type |
N-Female |
|
Color |
Black |
|
Operational Temperature (°C) |
-40 to +80 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
Indoor or Outdoor (IP65) |
* Wide-band design, cover DC-6000MHz
* Low PIM
* Compact size, light weight
