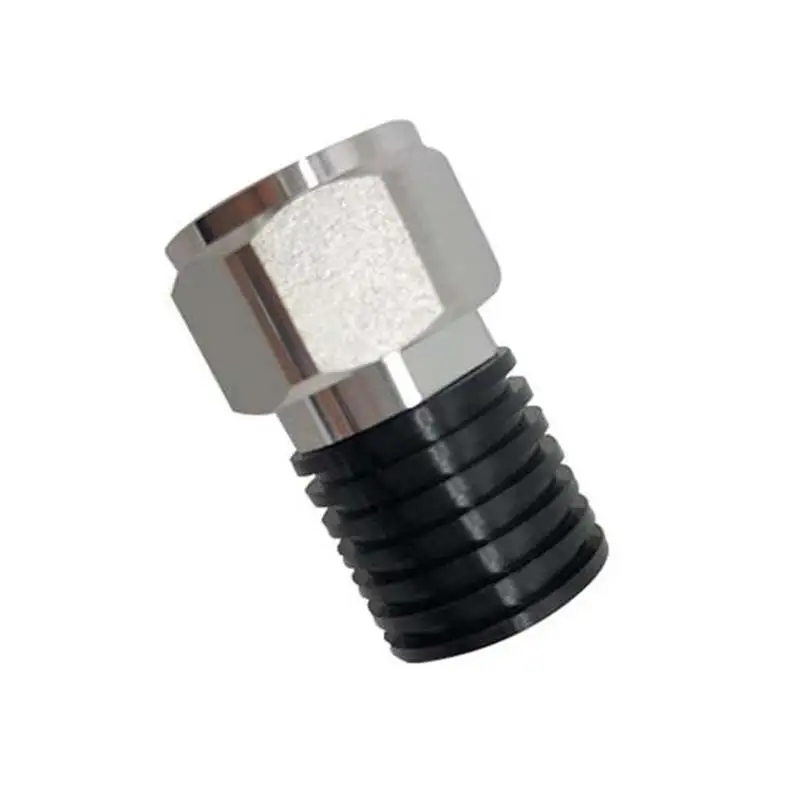

AMPLITEC FZDC60-D-2B Low loss
* Wide-band design, cover DC-6000MHz
* Low PIM
* Compact size, light weight
Model Name | FZDC60-D-2B |
Frequency Range (MHz) | DC-6000 |
VSWR | ≤1.2 |
PIM(dBc) | ≤-160@@ 2×37dBm |
Impedance(Ω) | 50 |
Power Handling(W) | 2,Avg |
Mechanical Specifications
Dimension (L×W×H) (mm) | 37×Φ20 |
Weight (including connectors and mounting bracket) (kg) | 0.5 |
Connector Type | 4.3-10 Male |
Color | Black |
Operational Temperature (°C) | -30 to +65 |
Operational Humidity (%) | ≤95 |
Ingress Protection Class | Indoor or Outdoor (IP65) |
* Wide-band design, cover DC-6000MHz
* Low PIM
* Compact size, light weight
