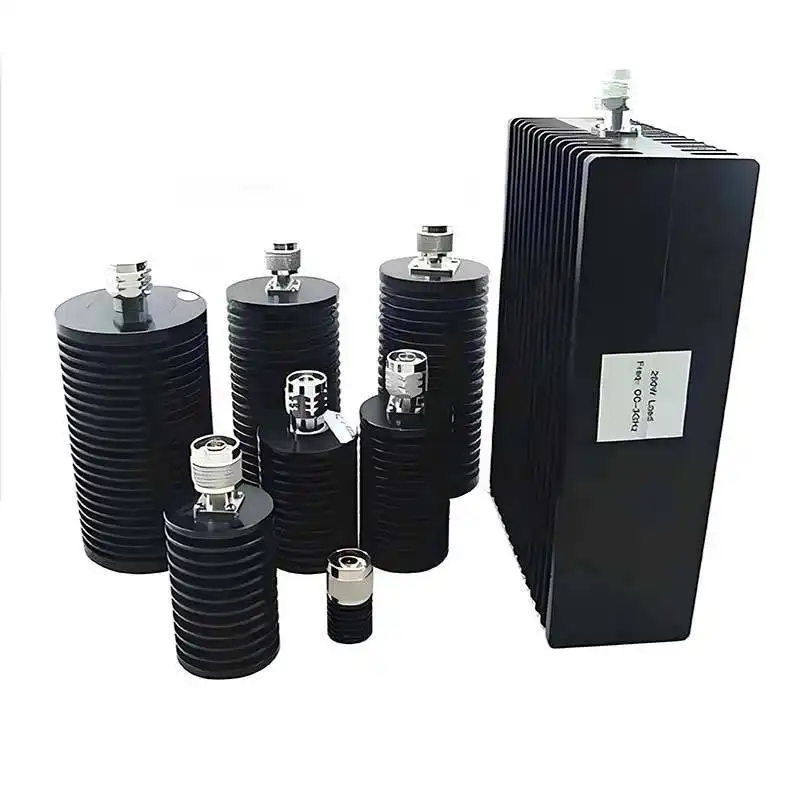

AMPLITEC 5W/10W/50W/100W RF Loads Low loss
* Small size, large power capacity, good high frequency characteristics, stable and reliable performance, easy installation
* Suitable for power divider, isolation resistance and terminal load resistance in high frequency circuits
* Whether it is volume, power, resistance, working frequency, standing wave ratio, working temperature, etc., products of different specifications can be made according to different working occasions and requirements, fully meeting the needs of different customers!
Model | RL5-3-N | RL10-3-N | RL25-3-N | RL30-3-N | RL50-3-N | RL100-3-N | RL200-3-N |
Power | 1/2/5 | 10 | 25 | 30 | 50 | 100 | 200 |
Frequency(GHz) | DC-3GHz | ||||||
VSWR | ≦1.20 | ||||||
Impedance(ohm) | 50 | ||||||
RF Connector | N-male | ||||||
Working Temp(deg) | -55~+125 | ||||||
Weight(kg) | 0.10 | 0.15 | 0.25 | 0.25 | 0.40 | 0.80 | 2.70 |
* Small size, large power capacity, good high frequency characteristics, stable and reliable performance, easy installation
* Suitable for power divider, isolation resistance and terminal load resistance in high frequency circuits
* Whether it is volume, power, resistance, working frequency, standing wave ratio, working temperature, etc., products of different specifications can be made according to different working occasions and requirements, fully meeting the needs of different customers!
