Specialize in Signal Repeater & Jammer R&D and manufacturing since 2006
* Elegant appearance, simple installation, stable performance.
* Fit for indoor & Outdoor Wall mounted.
* Fiberglass Radome Good performance in anti-vibration and resistant to aging.
* All Weather Operation.
* Stable Steel Installation Kit.
* High gain best for Helium miner.

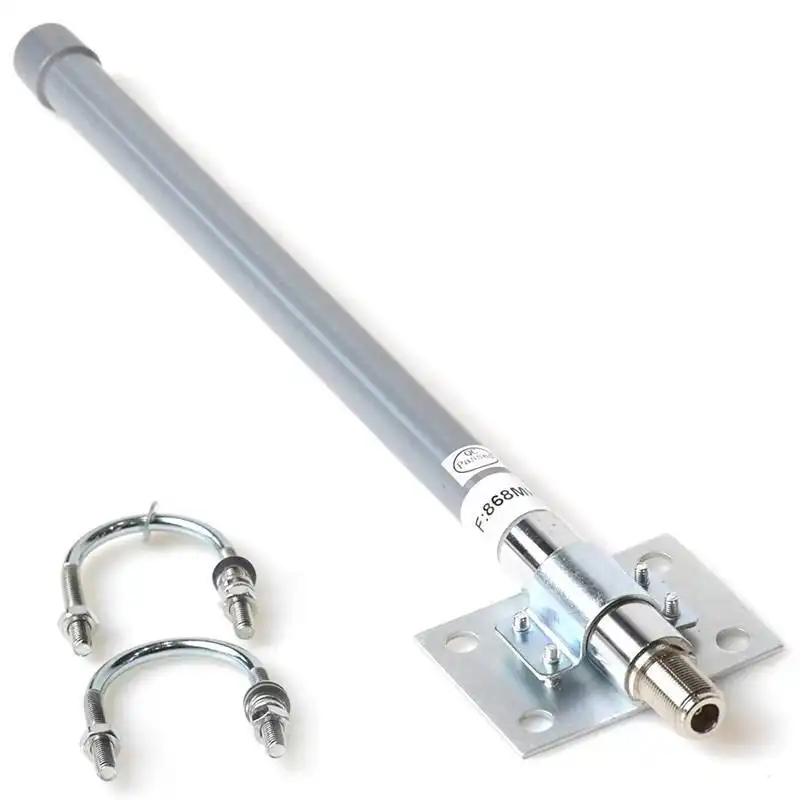

3dbi 5.8dbi 8dbi 9dbi 10dbi 12dbi many kinds of helium fiberglass antenna to choose. It's the best quality helium miner antenna for HNT. Not only support 868mhz, but also 915mhz. IP65 material fit for outdoor installation and wall mounted. Greatly enhance the efficiency of currency production. And if you have any technical questions, you can consult us Amplitec at any time, because we have a professional team of engineers who can answer questions 24 hours a day.
Frequency | 860 ~ 930MHz |
Bandwidth | 70MHz |
VSWR | ≤1.5 |
Gain | 3/5.8/8/9/10/12dbi |
Max power | 50 W |
Impedance | 50Ω |
Polarization | Vertical |
Horizontal Beamwidth | 360° |
Vertical Beamwidth | 10° |
Front to Back Ratio | ≥15dB |
Rated Wind Velocity | 200m/s |
Lightning Protection | DC Ground |
Weight | 0.4kg |
Dimension | Φ20×300 mm |
Connector Type | N-Female or customized |
Ingression Grade | IP65 |
Radiating Element Material | Copper |
Radome Material | Fiberglass |
* Elegant appearance, simple installation, stable performance.
* Fit for indoor & Outdoor Wall mounted.
* Fiberglass Radome Good performance in anti-vibration and resistant to aging.
* All Weather Operation.
* Stable Steel Installation Kit.
* High gain best for Helium miner.
