* Elegant appearance and good ant-water capability;
* Wide band and high gain;
* 360° all-dimensional coverage, wide coverage direction;
* Easy to install and not easy to be noticed.

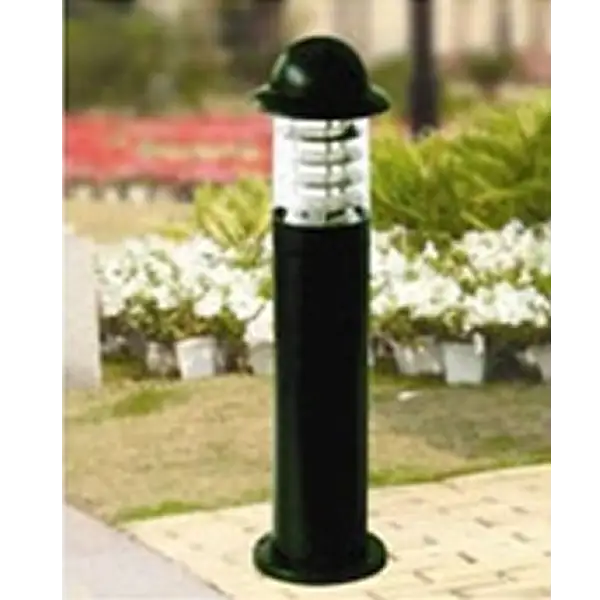

Integrated cylindrical omni antenna into specially designed lawn light holder, it can not only solve the problem of signal coverage but also has no influence to the exterior environment.
Its camouflage property enables the coverage system free from man-made damage.
Usually used in garden or residential area.
* Elegant appearance and good ant-water capability;
* Wide band and high gain;
* 360° all-dimensional coverage, wide coverage direction;
* Easy to install and not easy to be noticed.
Model | AM-CPQ8025-07360 | |
Frequency Range | 824-960-MHz | 1710-2500-MHz |
Bandwidth | 136-MHz | 790-MHz |
Gain | 4.5-dBi | 7-dBi |
Beamwidth | H:360-° E:35-42-° | H:360-° E:15-22-° |
F/B ratio | ≥15-dB | ≥18-dB |
VSWR | ≤1.5 | |
Polarization | Vertical | |
Max power | 50 –W | |
Nominal Impedance | 50 –Ω | |
Lighting Protect | DC Ground | |
Connector | N female or customized | |
Dimension | Actual size | |
Radome Material | UPVC | |
Radiator Material | PCB, Copper | |
Weight | Actual weight | |
Operating Temperature | -40~+60°C | |
Rated Wind Velocity | 126-m/s |
