Passive Components Distributor by Amplitec
Company Advantages
· Amplitec passive components distributor is precisely manufactured in accordance with industry set norms.
· The product has been tested and inspected according to the strict quality standards.
· Advanced machines in Amplitec allows us to produce mass production.
Company Features
· Foshan Amplitec Tech Development Co.,Ltd is a prominent enterprise which mainly produce passive components distributor.
· Foshan Amplitec Tech Development Co.,Ltd forms its own technical strategy in passive components distributor after years of development.
· We have focused most of our efforts to mitigate our environmental footprint on the parts of our business. We try to minimize our production waste and use electricity more efficiently.
Application of the Product
The passive components distributor developed by our company can be applied in different fields.
Amplitec always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.

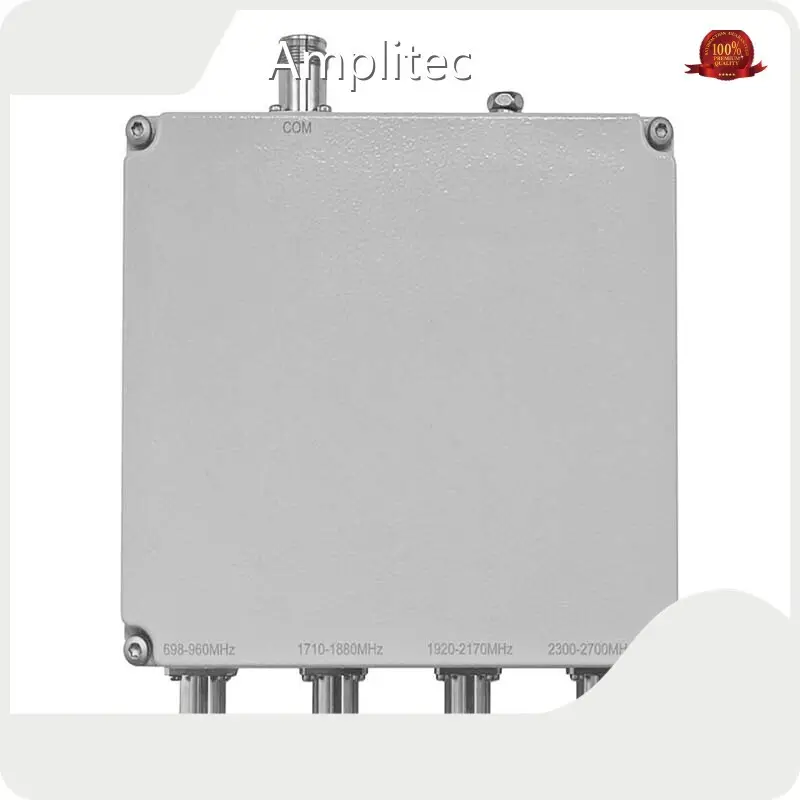

Model | CM0727-4D-B | |||
Technical Specifications | ||||
Port | Port1 | Port2 | Port3 | Port4 |
Frequency Rang(MHz) | 698 - 960 | 1710 - 1880 | 1920 - 2170 | 2300 - 2700 |
VSWR | ≤1.3 | |||
Insertion Loss | ≤0.7 | |||
Out of Band Rejection | ≥50dB | ≥50dB | ≥50dB | ≥50dB |
PIM | ≤-160dBc (43dBm×2) | |||
Power Rating | Continuous: ≥300W Peak: ≥1000W | |||
RF connector | 4.3-10 Female | |||
Operating Temperature | -25℃～+65℃ | |||
Humidity | ≤95％ | |||
Environment Condition | Indoor or outdoor (IP66) | |||
Dimension(without connector)(mm) | 238x208x48 | |||
Weight(kg) | ≤ 6 | |||
* Low VSWR & Insertion Loss
* High Out of Band Rejection
