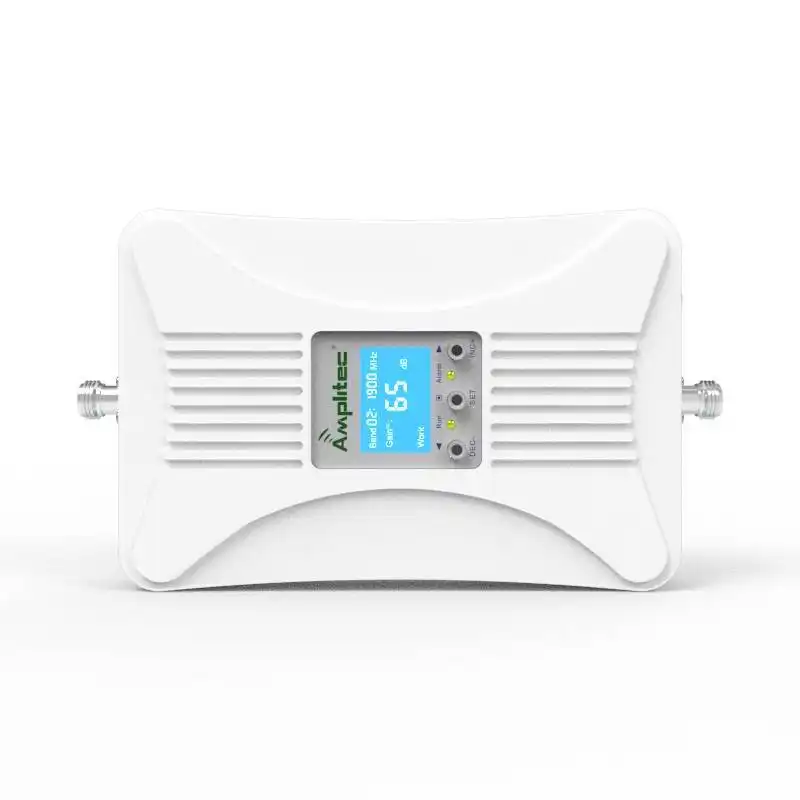

17dBm Amplitec 2g 3g 4g Mobile Cell Phone Signal Booster For Home
* 99% pass customs clearance,Amplitec have many certificates,such as CE,RoHS,FCC,etc...
* 100% solve mobile cell phone weak signal problem.
* LCD display of operating figures.
* Real time isolation check and alarm.
* Self oscillation elimination, auto degrading of output power in case of insufficient isolation detected.
* Auto turn-off in case of excessive self oscillation or over input.
* Idle turn-off, auto turn-off of uplink while no active users in the coverage , lowering interference to BTS.
* MGC, Manual control of output gain with 1dB step in the range of 31dB.
* ALC, auto control of output power for stable coverage.
* Linkage between uplink and downlink gain, keeping uplink and downlink balanced.
* Compact size, low power consumption and easy to install.
*Amplitec handle many engineering cases around the world,we have rich experience in mobile phone signal coverage project.
*Amplitec Own Chinese the largest signal booster manufacturing factory, so our quality control and production capacity leading the world.
*Most of Amplitec's signal booster have certificates,such as CE, RoHS, FCC, etc...
*Amplitec have rich exhibition experience, our signal boosters are recognized in many regions around the world.
Model | C17L-BxBx |
Frequency Band | Any two in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 |
Bandwidth | Full Bandwidth |
Gain | UL 65dB , DL 70dB |
Output Power | UL 15dBm, DL 17dBm |
Gain Attenuate | 1~31dB, Step of 1dB |
ALC Control Range | ≥30dB |
VSWR | ≤2.0 |
Spurious Emission | ≤-36dBm @ 9KHz~1GHz, ≤-30dBm @ 1GHz~12.75GHz |
ACRR | Fully comply with 3GPP |
EVM | Fully comply with 3GPP |
PCDE | Fully comply with 3GPP |
Noise Figure | ≤8.0dB |
Group Delay | ≤1.5μs |
Power Supply | DC 5V /2A |
Dimension | 220*140*37mm |
Weight | <1.2kg |
Note：The letter "x" means the 3gpp 4G band number: 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 | |
* 99% pass customs clearance,Amplitec have many certificates,such as CE,RoHS,FCC,etc...
* 100% solve mobile cell phone weak signal problem.
* LCD display of operating figures.
* Real time isolation check and alarm.
* Self oscillation elimination, auto degrading of output power in case of insufficient isolation detected.
* Auto turn-off in case of excessive self oscillation or over input.
* Idle turn-off, auto turn-off of uplink while no active users in the coverage , lowering interference to BTS.
* MGC, Manual control of output gain with 1dB step in the range of 31dB.
* ALC, auto control of output power for stable coverage.
* Linkage between uplink and downlink gain, keeping uplink and downlink balanced.
* Compact size, low power consumption and easy to install.
