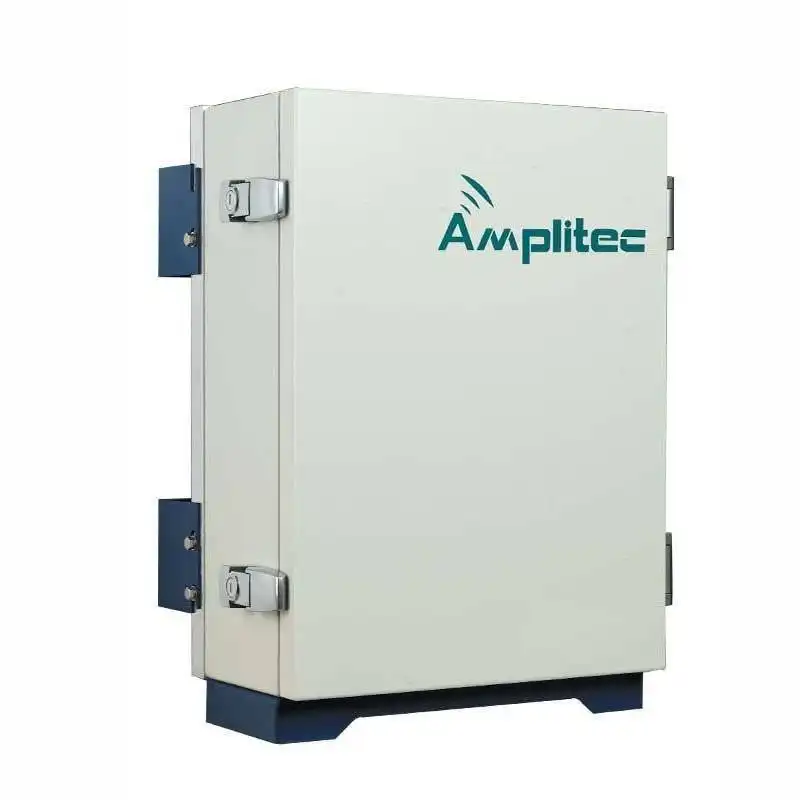

AMPLITEC S33T Series Single Dual Tri Band Digital Selective Repeater Low loss
* High-quality aluminum alloy shell, good heating dissipation.
* Alarm LED indication.
* AGC function special for electric fans.
* Manual gain attenuation, with 1dB step to attenuate the gain among 1-30dB range.
* ALC could limit the output power to ensure stable coverage.
* Support 3 sub-bands and each bandwidth is with maximum 24MHz.
* Can be controlled and monitored, via RS232 connects PC for local control, via GSM modem connects PC for remote control.
Amplitec S33T series digital mobile signal repeater is used to extend mobile providers' networks. These repeater are cellular solutions with easy installation, which enable operators to improve signal coverage without establishing new BTS. The repeater is adjusted strictly to the bandwidth at which mobile provider performs. It support 3 sub-bands and up to 12 channels per customer’s request. In case it’s necessary to change the band frequency, the user can easily do it thanks to the SDR technology in the digital repeater.
The repeater has Digital IF SAW filter technology. Support 3 sub-bands and each bandwidth is with maximum 24MHz.
It can upgrade the underlying FPGA code with the help of the upper software to change the frequency-selecting and band-selecting mode, and it also can make a flexible configuration to the parameters, such as the operation bandwidth and so on.
It can be controlled and monitored, via RS232 connecting PC for local control, via GSM modem connecting PC for remote control, set the frequency and ATT of UL or DL, check the output power of UL or DL, and check the temperature alarm and ALC alarm via the OMT.
Standard Package
1) AC power cord (EU standard/ US standard/ UK standard/ SA standard/ China standard etc.) 1PCS
2) Installation kit 1PCS
3) User manual 1PCS
|
Items |
Uplink |
Downlink |
|
|
Frequency Range |
1850 ~ 1915 MHz |
1930 ~ 1995 MHz |
|
|
Working Bandwidth (Frequency can be set by software) |
0.2~24 MHz(in steps of 200 KHz) |
0.2~24 MHz(in steps of 200 KHz) |
|
|
Number of sub-band |
1~3 |
1~3 |
|
|
Output Power |
24±2 dBm |
33±2 dBm |
|
|
Gain |
75±3 dB |
80±3 dB |
|
|
Ripple |
Type≤4 dB |
Type≤4 dB |
|
|
VSWR |
≤2 |
≤2 |
|
|
Intermodulation Products(CW) |
≤ -45dBc |
≤ -36dBc |
|
|
Spurious Emission |
9KHz~1GHz |
≤ -36dBm |
|
|
1GHz~12.75GHz |
≤ -30dBm |
||
|
ALC Active 10dB |
∣△∣≤2dB |
∣△∣≤2dB |
|
|
Max. Input Power Without Damage |
-10dBm |
-10dBm |
|
|
ATT step of 1dB |
1 ~ 10dB |
∣△∣≤1dB |
∣△∣≤1dB |
|
10 ~ 20dB |
∣△∣≤1dB |
∣△∣≤1dB |
|
|
20 ~ 30dB |
∣△∣≤1.5dB |
∣△∣≤1.5dB |
|
|
Out of Band Gain |
± 600 KHz |
≤50 dB |
≤50 dB |
|
± 1 MHz |
≤35 dB |
≤35 dB |
|
|
± 5 MHz |
≤25 dB |
≤25 dB |
|
|
Noise Figure @ max. gain |
≤6 dB |
≤6 dB |
|
|
Time Delay |
≤13 μs |
≤13 μs |
|
|
Alarm |
ALC not Active |
— |
Green |
|
ALC Active 5~10dB |
— |
Orange |
|
|
ALC Active 15~20dB |
— |
Red |
|
|
Power LED |
Power ON |
Green |
|
|
Power OFF |
No Light |
||
|
Local Control Or Remote Control |
1.UL&DL Gain |
||
|
2. Frequency |
|||
|
Monitoring and control |
Local |
RS232 |
|
|
Remote |
GSM Modem |
||
|
RF Connector |
N-Female |
||
|
Environment Conditions |
IP40 |
||
|
Power Supply |
AC：220V |
||
|
Power Consumption |
≤100W |
||
|
Humidity |
< 90% |
||
|
Operating Temperature |
-10℃~+55℃ |
||
|
Size |
450*340*195mm |
||
|
Weight |
21Kg |
||
* High-quality aluminum alloy shell, good heating dissipation.
* Alarm LED indication.
* AGC function special for electric fans.
* Manual gain attenuation, with 1dB step to attenuate the gain among 1-30dB range.
* ALC could limit the output power to ensure stable coverage.
* Support 3 sub-bands and each bandwidth is with maximum 24MHz.
* Can be controlled and monitored, via RS232 connects PC for local control, via GSM modem connects PC for remote control.
