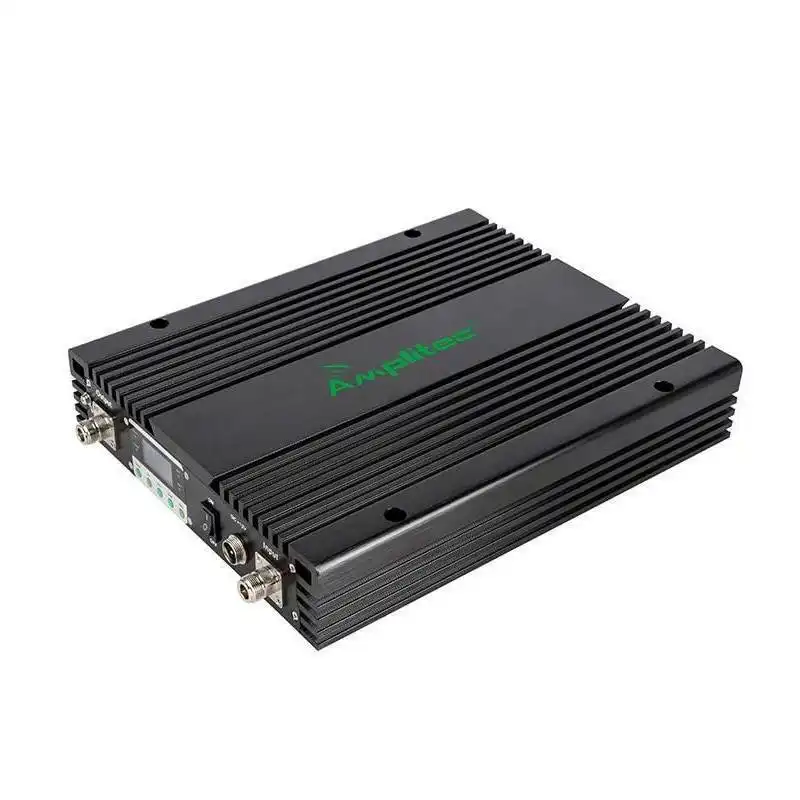

AMPLITEC W23S Series With LCD Band Selective Repeater Low loss
* Amplitec Digital ALC technology,auto limit the output power to ensure stable signal coverage.
* OLED display of system operating status such as frequency,gain,output power and isolation.
* Anti-interference,real time auto ISO detection and Self Oscillation Elimination keeping base station away from interference.
* Able to increase signal coverage,decrease mobile phone radiation, and increase mobile phone battery lifespan.
In mobile communication, it is inevitable that macro-cell coverage cannot cover weak or dead zones; to use repeater is a good choice in these areas. It mainly applied in covering small blind and weak zones, Such as VIP rooms, offices, houses, restaurants, apartments, parking lots, etc.
Standard Package
1) AC90-264V, DC12V power supply adapter 1PCS
2) AC power cord (EU standard/ US standard/ UK standard/ SA standard/ China standard etc.) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS
|
Item |
Uplink |
Downlink |
|
|
Frequency Range |
CDMA (LTE B5) |
824 ~ 849 MHz |
869 ~ 894 MHz |
|
IDEN (LTE B27) |
806 ~ 824 MHz |
851 ~ 869 MHz |
|
|
EGSM (LTE B8) |
880 ~ 915 MHz |
925 ~ 960 MHz |
|
|
DCS (LTE B3) |
1710 ~ 1785 MHz |
1805 ~ 1880 MHz |
|
|
PCS (LTE B2) |
1850 ~ 1910 MHz |
1930 ~ 1990 MHz |
|
|
WCDMA (LTE B1) |
1920 ~ 1980 MHz |
2110 ~ 2170 MHz |
|
|
AWS (LTE B4) |
1710 ~ 1755 MHz |
2110 ~ 2155 MHz |
|
|
Bandwith |
According to the choice of a dual frequency or single frequency of any frequency |
||
|
Output Power |
12±2 dBm |
23±2 dBm |
|
|
Gain |
70±2 dB |
70±2 dB |
|
|
Max. Input Power Without Damage |
-10 dBm |
-10 dBm |
|
|
Intermodulation Products |
9KHz~1GHz |
≤-36 dBm |
≤-36 dBc |
|
1GHz~12.75GHz |
≤-30 dBm |
≤-36 dBc |
|
|
Spurious Emission |
9KHz~1GHz |
≤-36 dBm |
≤-36 dBm |
|
1GHz~12.75GHz |
≤-30 dBm |
≤-30 dBm |
|
|
ATT step of 1 dB |
1~10 dB |
∣△∣≤1 dB |
∣△∣≤1 dB |
|
10~20 dB |
∣△∣≤1 dB |
∣△∣≤1 dB |
|
|
20~30 dB |
∣△∣≤1.5 dB |
∣△∣≤1.5 dB |
|
|
ALC Active 10dB |
∣△∣≤2 dB |
∣△∣≤2 dB |
|
|
AGC Alarm |
Not Active |
— |
Green |
|
Active 5~25 dB |
— |
Orange |
|
|
Active ≥ 30 dB |
— |
Red |
|
|
Power LED |
Power ON |
Green |
|
|
Power OFF |
No Light |
||
|
Noise Figure @ max. gain |
≤8 dB |
≤8 dB |
|
|
Time Delay |
≤1.5 μs |
≤1.5 μs |
|
|
Power Supply |
DC：+12V |
||
|
Power Consumption |
< 20 W |
||
|
RF Connector |
N-Female |
||
|
Operating Temperature |
-10℃ ~ +55℃ |
||
* Amplitec Digital ALC technology,auto limit the output power to ensure stable signal coverage.
* OLED display of system operating status such as frequency,gain,output power and isolation.
* Anti-interference,real time auto ISO detection and Self Oscillation Elimination keeping base station away from interference.
* Able to increase signal coverage,decrease mobile phone radiation, and increase mobile phone battery lifespan.
