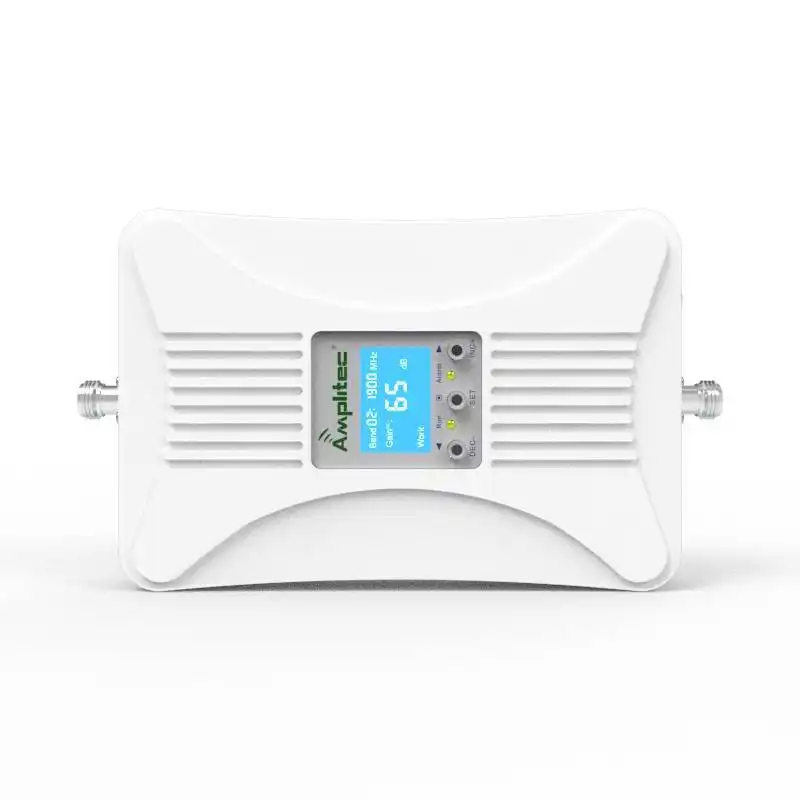

AMPLITEC 20dBm Single Band Mobile Signal booster Low loss

* Amplitec's signal boosters almost have CE/RoHS/FCC Certifications,high quality and safely,99.9% success for customs clearance.

* 100% solve mobile cell phone signal problem.

* Auto turn-off protection in case of excessive self oscillation or over input.

* ALC function,auto control of output power for stable coverage.

* Easy to cover over 600-1000m2 and easy to install.

* Average using life is over 5 years.

* One year warranty.

    oops...!

    no product data.

    Go to homepage

          C20L series smart signal repeater is a latest high-end product, researched and developed by Amplitec. It is designed with technology and environment oriented conception, as a perfect combination of environmental protection and signal coverage. It carries with features like novel appearance, high intelligence, high circuit integration, low cost, low power consumption, etc.

          Aluminum alloy specular shell makes it more technical sense. Large-size LCD screen with blue backlight help users easily get each operating parameter. Smart functions including isolation detection, self-excitation elimination, uplink auto standby and uplink&downlink gain linkage make easier and quicker installation. C20L series repeater provides a rapid and perfect solution to solve and optimize the weak signal of houses, offices, hotels, elevators, underground parking lots and other small weak signal area.


    Standard Package

    1) DC12V/10A power supply 1PCS
    2) AC power cord (EU standard /US standard/UK standard/SA standard/China standard, etc ) 1PCS
    3) Installation kit 1PCS
    4) User manual 1PCS

    Model

    C20L-Bx

    Frequency Band

    Any one in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66

    Bandwidth

    Full Bandwidth

    Gain

    UL 65dB, DL 70dB

    Output Power

    UL 15dBm, DL 20dBm

    Gain Attenuate

    1~31dB, Step of 1dB

    ALC Control Range

    ≥ 30dB

    VSWR

    ≤ 2.0

    Spurious emission

    ≤-36dBm @ 9KHz~1GHz, ≤-30dBm @ 1GHz~12.75GHz

    ACRR

    Fully comply with 3GPP

    EVM

    Fully comply with 3GPP

    PCDE

    Fully comply with 3GPP

    Noise figure

    ≤8dB

    Group delay

    ≤1.5μs

    Power supply

    DC 5V /2A

    Dimension

    220*140*37mm

    Weight

    <1.2kg

    NoteThe letter "x" means the 3gpp band number: 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66


    * Amplitec's signal boosters almost have CE/RoHS/FCC Certifications,high quality and safely,99.9% success for customs clearance.

    * 100% solve mobile cell phone signal problem.

    * Auto turn-off protection in case of excessive self oscillation or over input.

    * ALC function,auto control of output power for stable coverage.

    * Easy to cover over 600-1000m2 and easy to install.

    * Average using life is over 5 years.

    * One year warranty.
