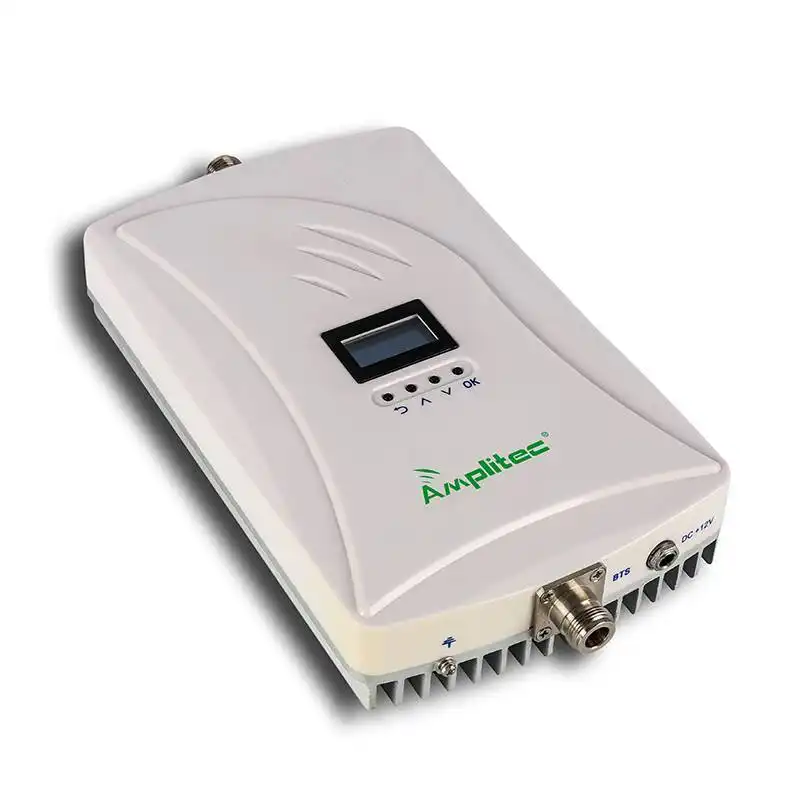

AMPLITEC 23 dBm Dual Wide Band Cell Phone Repeater with Display Low loss
* 99% pass customs clearance,Amplitec have many certificates,such as CE,RoHS,FCC,etc...
* 100% solve mobile cell phone weak signal problem.
* Signal booster able to increase signal coverage, decrease mobile phone radiation, and increase mobile phone battery lifespan.
* Amplitec's signal repeater easy to cover over 1000-3000m2 and easy to install.
* Dual band support two frequency bands high power 2g 3g 4g home signal booster.
* ALC function,auto control of output power for stable coverage.
* Average using life is over 5 years and one year warranty.
In mobile communication, it is inevitable that macro-cell coverage cannot cover weak or dead zones; to use repeater is a good choice in these areas. It mainly applied in covering small blind and weak zones, Such as VIP rooms, offices, houses, restaurants, apartments, parking lots, etc.
|
Model |
C23S-BxBx |
|
Frequency Band |
Any two in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 |
|
Bandwidth |
Full Bandwidth |
|
Gain |
UL 73dB , DL 73dB |
|
Output Power |
UL 23dBm, DL 23dBm |
|
Gain Attenuate |
1~31dB, Step of 1dB |
|
ALC Control Range |
≥25dB |
|
VSWR |
≤2.0 |
|
Spurious Emission |
≤-36dBm @ 9KHz~1GHz, ≤-30dBm @ 1GHz~12.75GHz |
|
ACRR |
Fully comply with 3GPP |
|
EVM |
Fully comply with 3GPP |
|
PCDE |
Fully comply with 3GPP |
|
Noise Figure |
≤8.0dB |
|
Group Delay |
≤1.5μs |
|
Power Supply |
DC 12V /3A |
|
Dimension |
292*140*48mm |
|
Weight |
<1.8kg |
|
Note：The letter "x" means the 3gpp 4G band number: 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 |
|
* 99% pass customs clearance,Amplitec have many certificates,such as CE,RoHS,FCC,etc...
* 100% solve mobile cell phone weak signal problem.
* Signal booster able to increase signal coverage, decrease mobile phone radiation, and increase mobile phone battery lifespan.
* Amplitec's signal repeater easy to cover over 1000-3000m2 and easy to install.
* Dual band support two frequency bands high power 2g 3g 4g home signal booster.
* ALC function,auto control of output power for stable coverage.
* Average using life is over 5 years and one year warranty.
