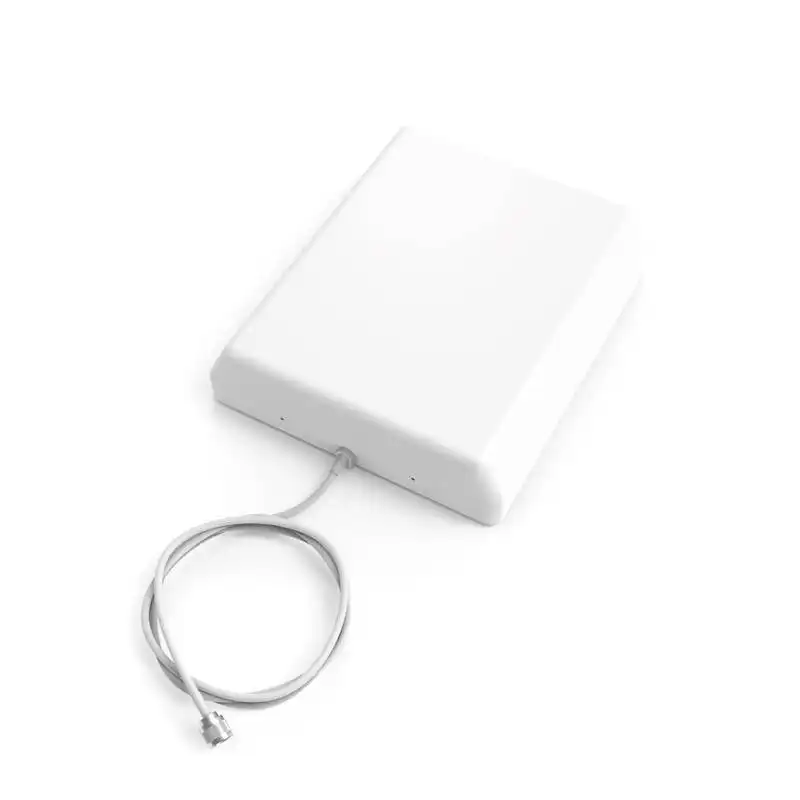

AMPLITEC PRO Indoor Panel Antenna 800-2700MHz Low loss
* Elegant appearance,simple installation ,stable performance.
* Good performance in anti-vibration and resistant to aging.
* Small size and Light weight.
* Fit for indoor Wall mounted.
Indoor Panel Antenna emits signals in a certain angle, the angle can be 60°, 90°and 120°etc. Its gain is relatively high; Its remitting direction is fixed, suitable for point to point transmission, its transmission distance farther than that of Omni Ceiling Antenna.
Mainly used in such indoor environment as meeting rooms, hotels and restaurants, business building, cinema, residential building and elevator and so on.
Elegant appearance and low power consumption. One antenna is enough for the whole floor.
|
Model |
IP8027-865 |
|
Frequency Range |
824-960/1710-2700 MHz |
|
Bandwidth |
136/990 MHz |
|
Gain |
8/10 dBi |
|
Beamwidth |
H:65° E:55° |
|
Intermodulation IM3 |
≤-153-dBc (@2x43dBm) |
|
VSWR |
≤1.5 |
|
Polarization |
Vertical |
|
Max power |
100 W |
|
Nominal Impedance |
50 Ω |
|
Connector |
N female or customized |
|
Antenna Dimension |
165 x 155 x 50 mm |
|
Weight |
0.3 kg |
|
Rated Wind Velocity |
60 m/s |
|
Mounting |
Wall Mount |
* Elegant appearance,simple installation ,stable performance.
* Good performance in anti-vibration and resistant to aging.
* Small size and Light weight.
* Fit for indoor Wall mounted.
