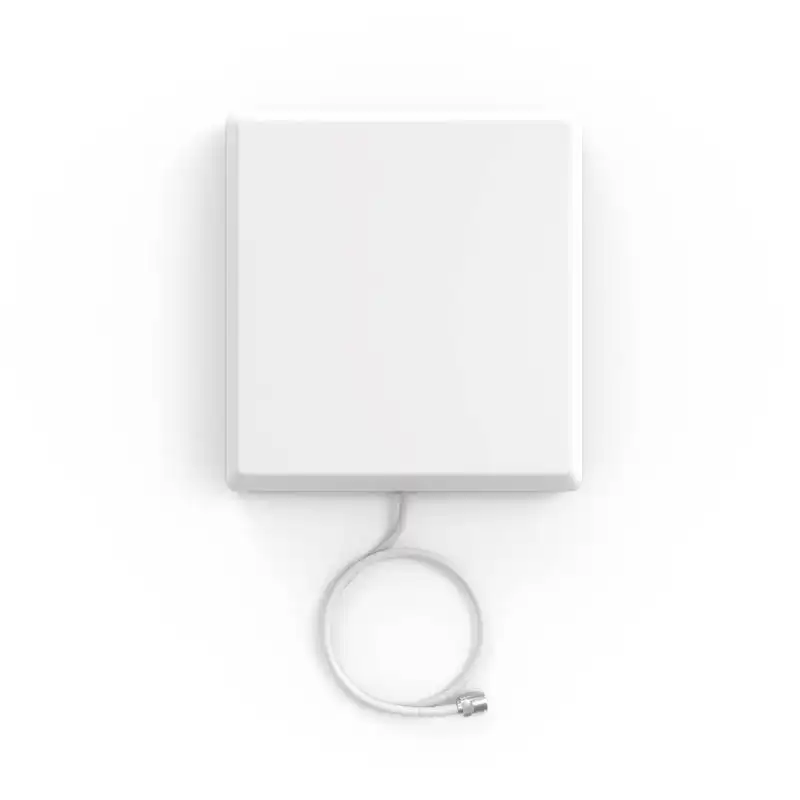

AMPLITEC Indoor Panel Directional Mobile 4g Network Signal Booster Antenna For Home Low loss
* Elegant appearance, simple installation, stable performance.
* Good performance in anti-vibration and resistant to aging.
* Small size and Light weight.
* Fit for indoor Wall mounted.
* 4g signal booster panel directional antenna wide frequency range 698~960/1710~2700 Mhz,support 2g 3g 4g systems.
* Amplitec mobile cell phone signal panel antenna is simple installation and stable performance.
* Amplitec signal receiver panel anntena is small size and light weight design,but high gain 9dBi.
* Amplitec panel antenna suitable for indoor and outdoor wall mounting.
Indoor Panel Antenna emits signals in a certain angle, the angle can be 60°, 90° and 120° etc. Its gain is relatively high, its remitting direction is fixed, suitable for point to point transmission, its transmission distance farther than that of Omni Ceiling Antenna.
Mainly used in such indoor environment as meeting rooms, hotels and restaurants, business building, cinema, residential building and elevator and so on.
Elegant appearance and low power consumption. One antenna is enough for the whole floor.
|
MODEL |
IP8025-965 |
|
Frequency |
806-960/1710-2500MHz |
|
Gain |
9dBi |
|
VSWR |
≤1.4 |
|
Max power |
100W |
|
Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Beamwidth |
65 |
|
Vertical Beamwidth |
55° |
|
Front to Back Ratio |
≥18dB |
|
Lightning Protection |
DC Ground |
|
Weight |
0.9kg |
|
Color |
beige |
|
Dimension |
210×180×43mm |
|
Connector Type |
N-Female customized |
|
Terminal line |
White 5D-FB, L=350mm |
|
Radiating Element Material |
Aluminum Alloy |
|
Radome Material |
UV-Resistance ABS |
* Elegant appearance, simple installation, stable performance.
* Good performance in anti-vibration and resistant to aging.
* Small size and Light weight.
* Fit for indoor Wall mounted.
* 4g signal booster panel directional antenna wide frequency range 698~960/1710~2700 Mhz,support 2g 3g 4g systems.
* Amplitec mobile cell phone signal panel antenna is simple installation and stable performance.
* Amplitec signal receiver panel anntena is small size and light weight design,but high gain 9dBi.
* Amplitec panel antenna suitable for indoor and outdoor wall mounting.
