Specialize in Signal Repeater & Jammer R&D and manufacturing since 2006

800-2700MHz Omni Ceiling Antenna 1
800-2700MHz Omni Ceiling Antenna 1

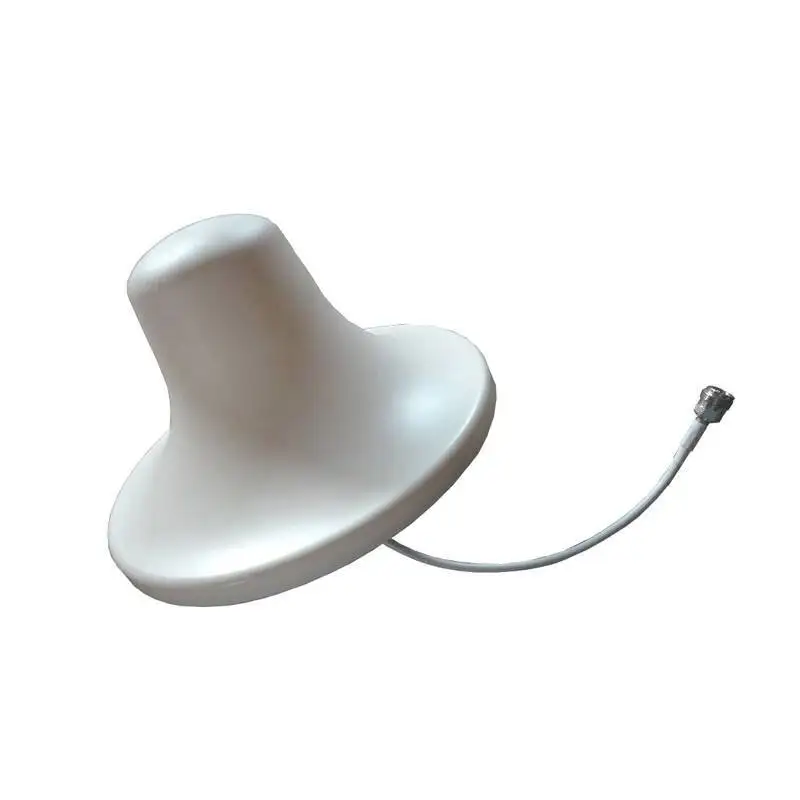

800-2700MHz Omni Ceiling Antenna

* High inter-modulation, low VSWR.

* Elegant appearance, simple installation, stable performance.

* Good performance in anti-vibration and resistant to aging.

* Fit for installation for Aluminum ceiling and Gypsum Ceiling.

    oops...!

    no product data.

    Go to homepage

    360° coverage can be achieved via Omni Ceiling Antenna; its gain is relatively low, mainly used in such indoor environment as meeting rooms, hotels and restaurants, business buildings, cinema, residential area etc.
    If adopt indoor distribution system, mini Omni Ceiling Antenna is a good choice with elegant appearance, low power consumption and wide band. Usually, it is installed on the ceiling of each floor in the large building where mobile signal needs to be enhanced.

    Model

    IO8027-03360

    Frequency Range

    824-960/1710-2700MHz

    Bandwidth

    136/990MHz

    Gain

    3/5-dBi

    Intermodulation IM3

    ≤-150dBc (2x43dBm)

    VSWR

    ≤1.5

    Polarization

    Vertical

    Max power

    50W

    Nominal Impedance

    50 –Ω

    Connector

    N female or customized

    Antenna Dimension

    Φ200×140-mm

    Weight

    200-g

    Color

    White

    Rated Wind Velocity

    60-m/s

    Working Temperature

    -40~+70℃

    Mounting

    Fixed with Nut


    * High inter-modulation, low VSWR.

    * Elegant appearance, simple installation, stable performance.

    * Good performance in anti-vibration and resistant to aging.

    * Fit for installation for Aluminum ceiling and Gypsum Ceiling.


    Project Case:


    800-2700MHz Omni Ceiling Antenna 2


    800-2700MHz Omni Ceiling Antenna 3
