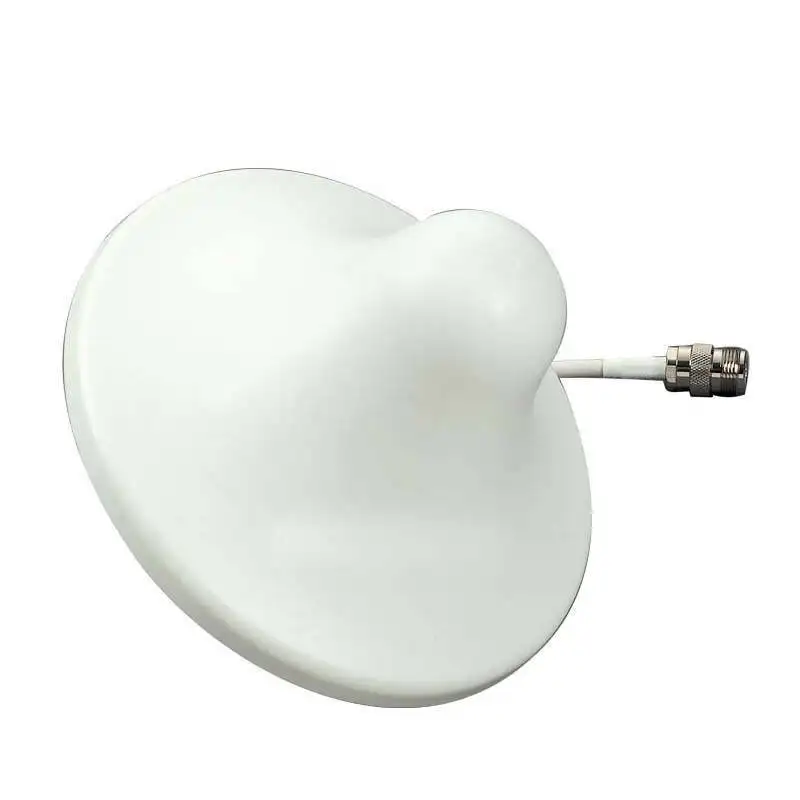

AMPLITEC Indoor Omni Ceiling Mobile Cell Phone Signal Booster Antenna Low loss
* Elegant appearance, simple installation, stable performance.
* Good performance in anti-vibration and resistant to aging.
* Fit for installation for Aluminum ceiling and Gypsum Ceiling.
* Amplitec indoor wideband omni ceiling cell phone booster antenna,frequency range 698~2700MHz,gain 3/5 dBi,widely used as the service antennas to mobiel signal booster.
* Elegant appearance,simple installation ,stable performance.
* Good performance in anti-vibration and resistant to aging.
* Fit for installation for Aluminum ceiling and Gypsum Ceiling.
360° coverage can be achieved via Omni Ceiling Antenna; its gain is relatively low, mainly used in such indoor environment as meeting rooms, hotels and restaurants, business buildings, cinema, residential area etc. If adopt indoor distribution system, mini Omni Ceiling Antenna is a good choice with elegant appearance, low power consumption and wide band. Usually, it is installed on the ceiling of each floor in the large building where mobile signal needs to be enhanced.
|
MODEL |
IO8025-03360 |
|
Frequency |
824-960/1710-2500MHz |
|
Gain |
3/5dBi 1710-2500MHz≥4.7dBi |
|
VSWR |
<1.4 |
|
Max power |
100W |
|
Impedance |
50Ω |
|
Polarization |
Vertical |
|
Beamwidth-H |
360° |
|
Beamwidth-E |
824-960MHz ≥ 65° -110° 1710-2500MHz≥30° -55° |
|
Color |
Beige |
|
Dimension |
φ160×95mm |
|
Connector Type |
N-Female or customized |
|
Terminal line |
White 5D-FB， L=350mm |
|
Weight |
0.35kg |
|
Temperature |
-40℃~+70℃ |
|
Radiating Element Material |
Copper |
|
Radome Material |
ABS |
* Elegant appearance, simple installation, stable performance.
* Good performance in anti-vibration and resistant to aging.
* Fit for installation for Aluminum ceiling and Gypsum Ceiling.
* Amplitec indoor wideband omni ceiling cell phone booster antenna,frequency range 698~2700MHz,gain 3/5 dBi,widely used as the service antennas to mobiel signal booster.
* Elegant appearance,simple installation ,stable performance.
* Good performance in anti-vibration and resistant to aging.
* Fit for installation for Aluminum ceiling and Gypsum Ceiling.
In accordance with the installation sketch, drill a hole of Φ20mm in the ceiling. Screw the fixing nut to fasten the antenna on the ceiling. The ceiling’s thickness is at most 20mm.
