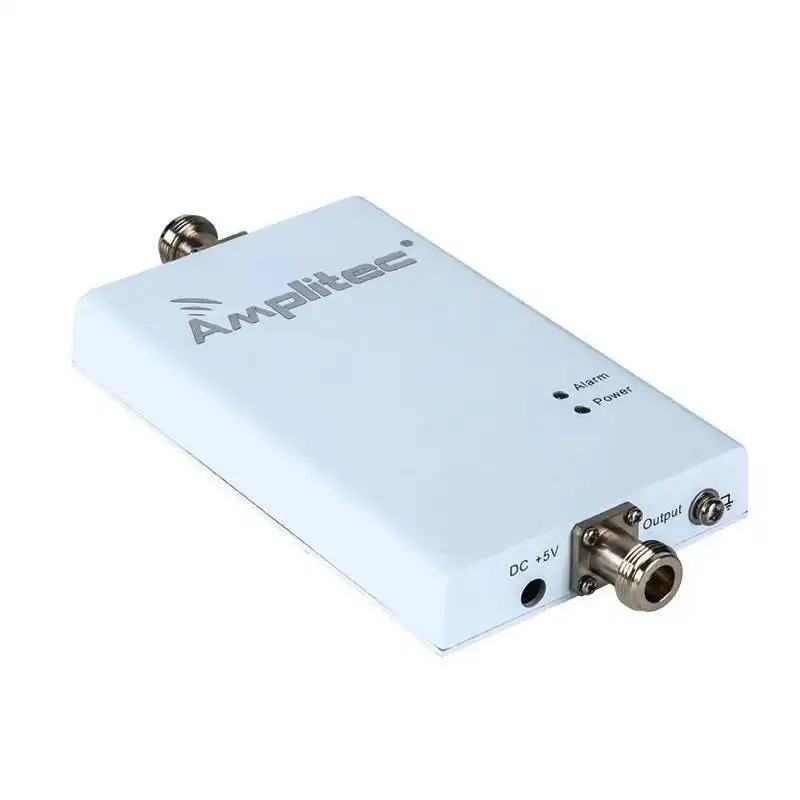

AMPLITEC C10G Series Wide Band Mini signal Repeater Low loss

*Amplitec ALC function,auto control of output power for stable coverage.

*1dB stepping,manual gain attenuation within 0-15dB range.

*Lightweight design but easy to cover 100-300m2.

*Average using life is over 5 years.

*One year warranty.



    oops...!

    no product data.

    Go to homepage

    C10G series wide band mini repeater is designed with harmonious humanity conception, as a perfect combination of environmental protection and signal coverage. The C10G series products carried with many features like, low consumption, light weight, high gain, low output power and easy installation, etc.
    It provides a rapid and perfect solution to solve and optimize the weak signal of houses, offices, hotels, elevators, underground parking lots and other small weak signal area.



    Standard Package

    1) AC90-260V ,DC5V 1A power supply adapter 1PCS
    2) AC power cord (EU standard/ US standard/UK standard/ SA standard/China standard, etc.) 1PCS
    3) Installation kit 1PCS
    4) User manual 1PCS

    Item

    Uplink

    Downlink

    Gain ( centre frequency)

    60 ± 3 dB

    60 ± 3 dB

    Bandwidth

    GSM/CDMA=25MHz,PCS=45MHz,WCDMA=60MHz

    Ripple in band

    ≤ 8dB

    ALC starts in 10dB, Power variation

    △≤ 1dB

    Output power

    10 ± 2 dBm

    10 ± 2 dBm

    Intermodulation

    ≤ -36 dBm

    ≤ -36 dBm

    Spurious Emission

    ≤ -36 dBm (RBW=30KHz)

    ≤ -36 dBm (RBW=30KHz)

    ≤ -30 dBm (RBW=1MHz)

    ≤ -30 dBm (RBW=1MHz)

    Noise figure

    ≤ 8 dB

    ATT attenuation (CF) frequency

    △<1dB

    △<2dB

    VSWR

    ≤ 2.5

    Time delay

    ≤ 0.5 μs

    Power supply

    DC:+ 5V ,≤ 0.8 A

    Power consumption

    ≤ 4 Watt

    LED indicator

    ON:Green; OFF:no color

    Alarm

    ALC doesn't work

    Green

    ALC starts in 5-10dB

    Orange

    ALC starts in 15-20dB

    Red

    Weight

    ≤ 0.5 Kg

    Working temperature

    -10℃ ~ 50℃




    AMPLITEC C10G Series Wide Band Mini signal Repeater Low loss 6

    Hi-Tech product certification
    AMPLITEC C10G Series Wide Band Mini signal Repeater Low loss 7





    *Amplitec ALC function,auto control of output power for stable coverage.

    *1dB stepping,manual gain attenuation within 0-15dB range.

    *Lightweight design but easy to cover 100-300m2.

    *Average using life is over 5 years.

    *One year warranty.



    AMPLITEC C10G Series Wide Band Mini signal Repeater Low loss 8
