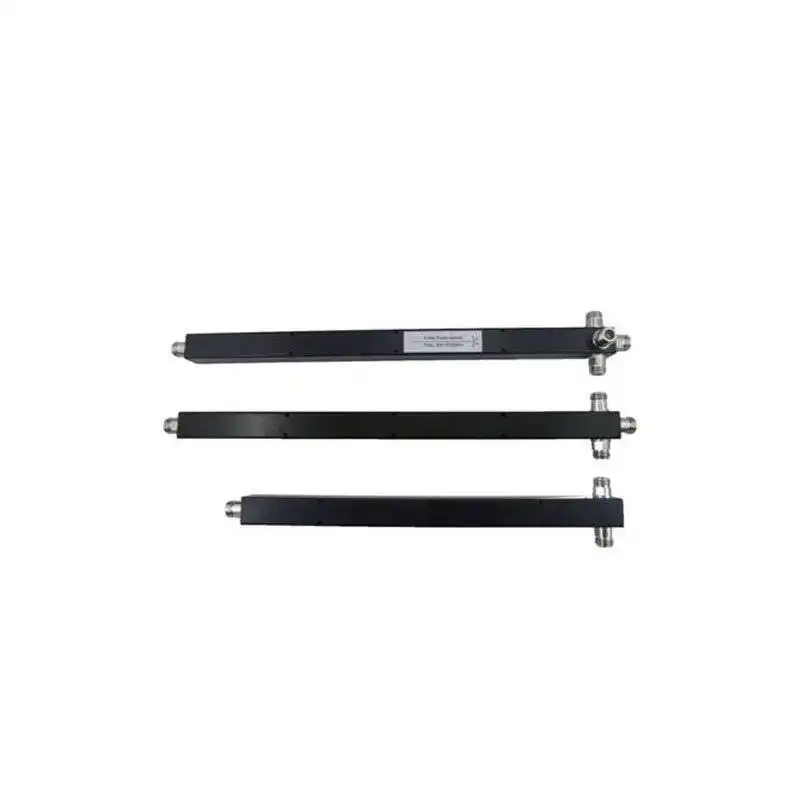

AMPLITEC Cavity Splitter (350-2700MHZ) Low loss
* Wide Frequency Band
* Low Insertion Loss
* Low VSWR
* Low Intermodulation
* Widely used in IBS & DAS
* Guaranteed one year standard
Amplitec 2 way,3 way,4 way power cavity splitter,freuency range 350~2700MHz,N-female connector,IBS low PIm accessories, mobile cell phone signal booster power splitter.Suitable to indoor and outdoor application. 350~2700MHz is suitable for all European frequency bands, no matter which operator or country you are.
|
Model Number |
SP300-2N-0327 |
SP300-3N-0327 |
SP200-4N-0327 |
|
Frequency Band (MHz) |
350-2700MHz |
||
|
Input Ports |
2-way |
3-way |
4-way |
|
Split Loss(dB) |
3.0 |
4.8 |
6.0 |
|
Insertion Loss(dB) |
≦0.4 |
≦0.5 |
≦0.6 |
|
VSWR |
≦1.30 |
||
|
PIM (dBc) |
≦-150dBc@2*43dBm |
||
|
Average Power(W) |
300 |
||
|
RF Connector |
N-female or 7/16 DIN-female |
||
|
Working Temperature(deg) |
-35~+65 |
||
|
Relative Humidity |
5%-95% |
||
|
Application |
Indoor or Outdoor, IP60 or IP65 |
||
|
Color |
Black-plated |
||
|
Weight(kg) |
0.60 |
0.65 |
0.72 |
* Wide Frequency Band
* Low Insertion Loss
* Low VSWR
* Low Intermodulation
* Widely used in IBS & DAS
* Guaranteed one year standard
