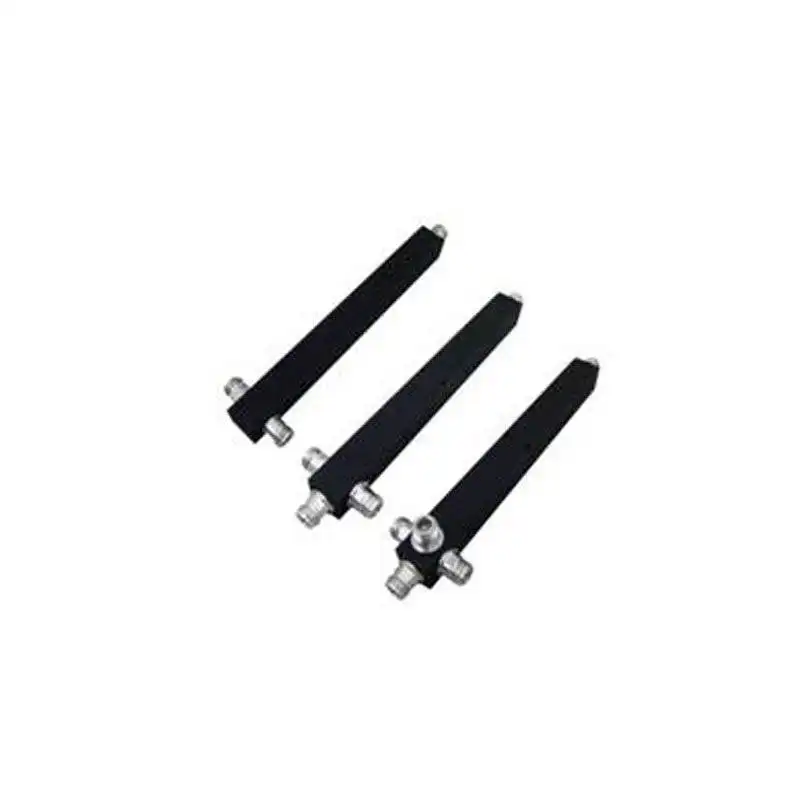

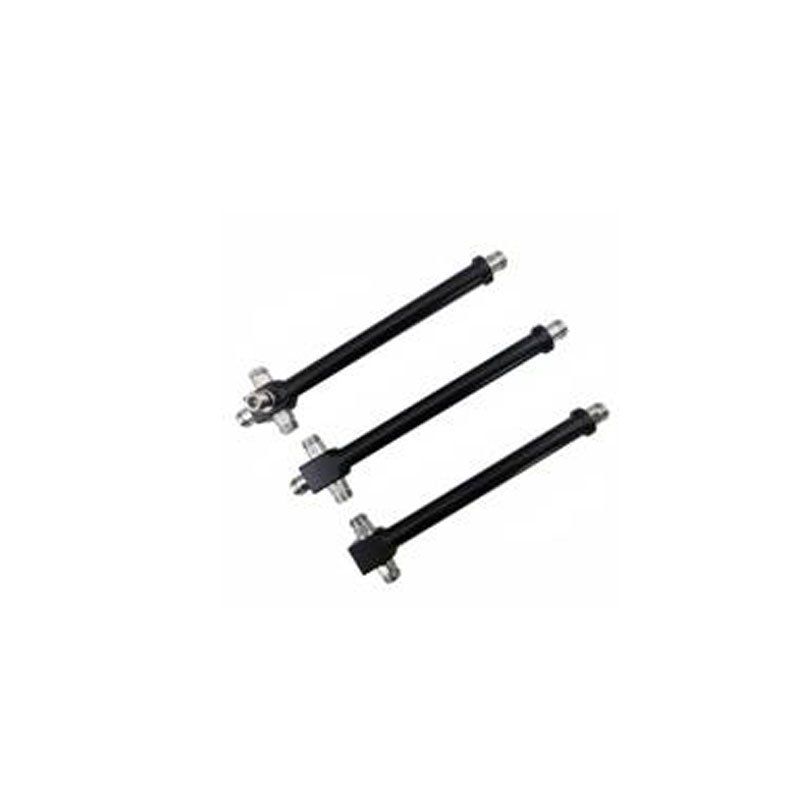

AMPLITEC Cavity Splitter (698-2700MHz) Low loss
Cavity Splitter (698-2700MHz)
* Wide Frequency Band
* Low Insertion Loss
* Low VSWR
* Low Intermodulation
* Widely used in IBS & DAS
* Guaranteed one year standard
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Model Number | SP200-2N-0827 | SP200-3N-0827 | SP200-4N-0827 |
|---|---|---|---|
| Frequency Band (MHz) | 698-2700MHz | ||
| Input Ports | 2-way | 3-way | 4-way |
| Split Loss(dB) | 3.0 | 4.8 | 6.0 |
| Insertion Loss(dB) | ≦0.3 | ≦0.4 | ≦0.4 |
| VSWR | ≦1.25 (Type N); ≦1.30 (Type DIN) | ||
| PIM (dBc) | ≦-150dBc@2*43dBm | ||
| Average Power(W) | 200 (Type N); 700 (Type DIN) | ||
| RF Connector | N-female or 7/16 DIN-female | ||
| Working Temperature(deg) | -35~+65 | ||
| Relative Humidity | 5%-95% | ||
| Application | Indoor or Outdoor, IP60 or IP65 | ||
| Color | Black-plated | ||
| Weight(kg) | 0.22 | 0.27 | 0.32 |
* Wide Frequency Band
* Low Insertion Loss
* Low VSWR
* Low Intermodulation
* Widely used in IBS & DAS
* Guaranteed one year standard
