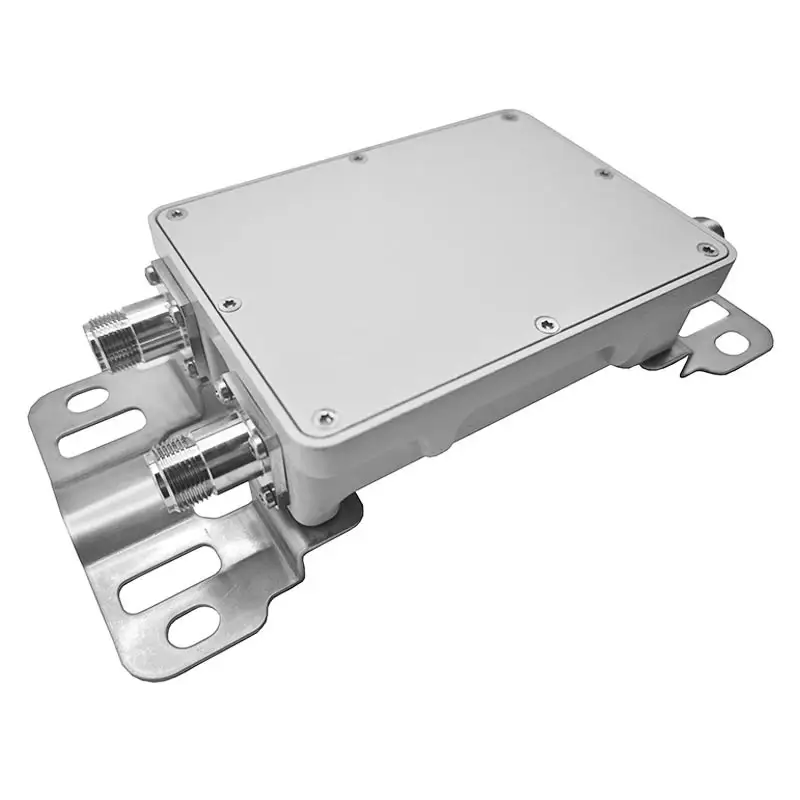

AMPLITEC CM0160-2D-B Combiner for 80 & 2700 and 3300 & 5925MHz Low loss
* Low VSWR & Insertion Loss
* High Out of Band Rejection
|
Model |
CM0160-2D-B |
|
|
Technical Specifications |
||
|
Port |
Port1 |
Port2 |
|
Frequency Rang(MHz) |
80 - 2690 |
3300 - 5925 |
|
VSWR |
≤1.3 |
|
|
Insertion Loss |
≤0.5 |
|
|
Out of Band Rejection |
≥50dB |
≥50dB |
|
PIM |
≤-160dBc (43dBm×2) |
|
|
Power Rating |
Continuous: ≥100W Peak: ≥500W |
|
|
Lightning protection |
10KA；10/350us pulse |
|
|
RF connector |
4.3-10 Female |
|
|
Operating Temperature |
-25℃～+65℃ |
|
|
Humidity |
≤95％ |
|
|
Environment Condition |
Indoor or outdoor (IP66) |
|
|
Dimension(without connector)(mm) |
128x95x37 |
|
|
Weight(kg) |
≤ 2 |
|
* Low VSWR & Insertion Loss
* High Out of Band Rejection
