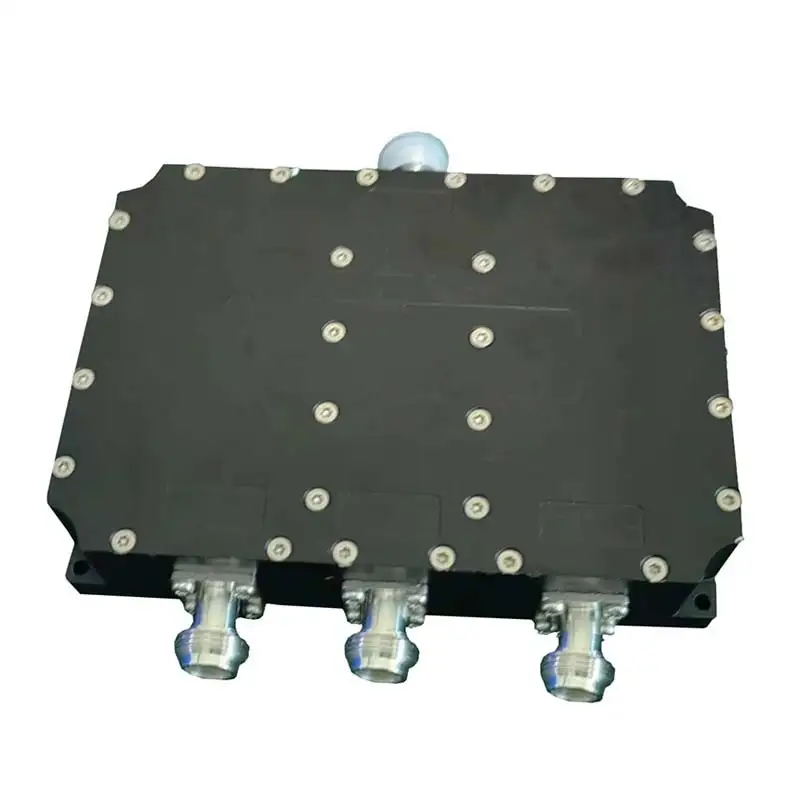

AMPLITEC CM0190-3T Combiner for 136 & 380 and 800MHz 1
AMPLITEC CM0190-3T Combiner for 136 & 380 and 800MHz 1

AMPLITEC CM0190-3T Combiner for 136 & 380 and 800MHz

Low VSWR & Insertion Loss

High Out of Band Rejection

    oops...!

    no product data.

    Go to homepage

    AMPLITEC CM0190-3T Combiner for 136 & 380 and 800MHz 2


    Model

    CM0190-3T

    Technical Specifications

    Port

    Port1

    Port2

    Port3

    Frequency Rang(MHz)

    136 - 174

    380 - 520

    760 - 896

    VSWR

    ≤1.3

    Insertion Loss

    ≤1.0dB

    Ripple in Band

    ≤1.0dB

    Out of Band Rejection

    ≥60dB

    ≥60dB

    ≥60dB

    Power Rating

    Continuous: ≥100W

    Peak: ≥300W

    RF connector

    TNC - Female

    Operating Temperature

    -25℃~+65℃

    Humidity

    ≤95%

    Environment Condition

    IP40

    Dimension(without connector)(mm)

    140x100x28

    Weight(kg)

    ≤ 3.5

    Low VSWR & Insertion Loss

    High Out of Band Rejection
