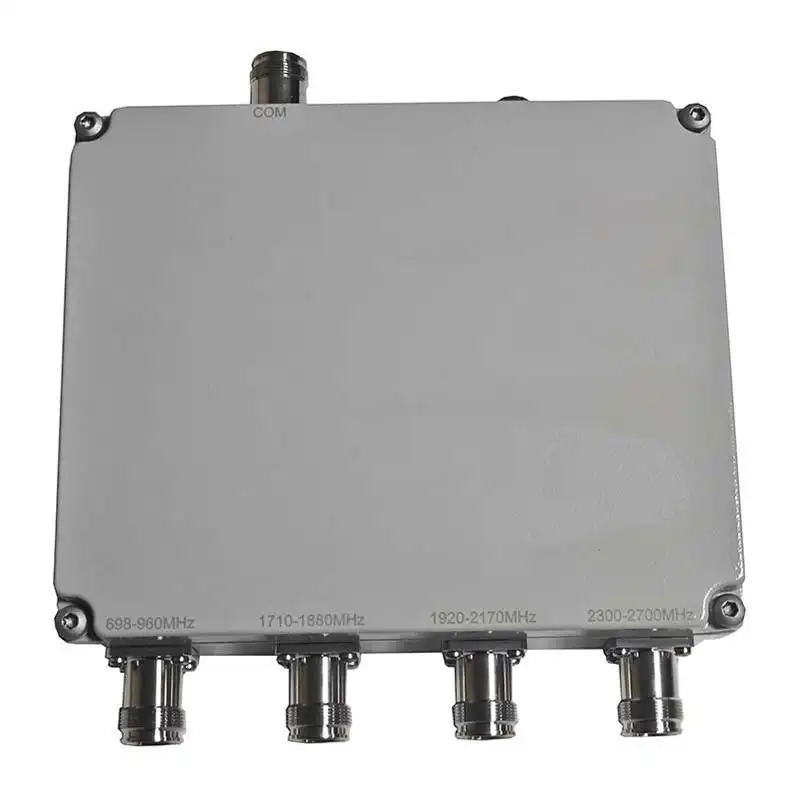

AMPLITEC CM0427-4D-B Combiner for 900 & 1800 and 2100 & 2500 MHz

* Low VSWR & Insertion Loss

* High Out of Band Rejection

    oops...!

    no product data.

    Go to homepage

    AMPLITEC CM0427-4D-B Combiner for 900 & 1800 and 2100 & 2500 MHz 4

    AMPLITEC CM0427-4D-B Combiner for 900 & 1800 and 2100 & 2500 MHz 5



    Model

    CM0427-4D-B

    Technical Specifications

    Port

    Port1

    Port2

    Port3

    Port4


    Frequency Rang(MHz)

    380 - 960

    1710 - 1880

    1920 - 2170

    2305 - 2690


    VSWR

    ≤1.3

    Insertion Loss

    ≤0.7

    Out of Band Rejection

    50dB

    50dB

    50dB

    50dB


    PIM

    ≤-160dBc (43dBm×2)

    Power Rating

    Continuous: ≥200W  Peak: ≥500W

    RF connector

    4.3-10 Female

    Operating Temperature

    -25℃+65℃

    Humidity

    ≤95

    Environment Condition

    Indoor or outdoor (IP65)

    Dimension(without connector)(mm)

    204x167x47

    Weight(kg)

    5


    * Low VSWR & Insertion Loss

    * High Out of Band Rejection
