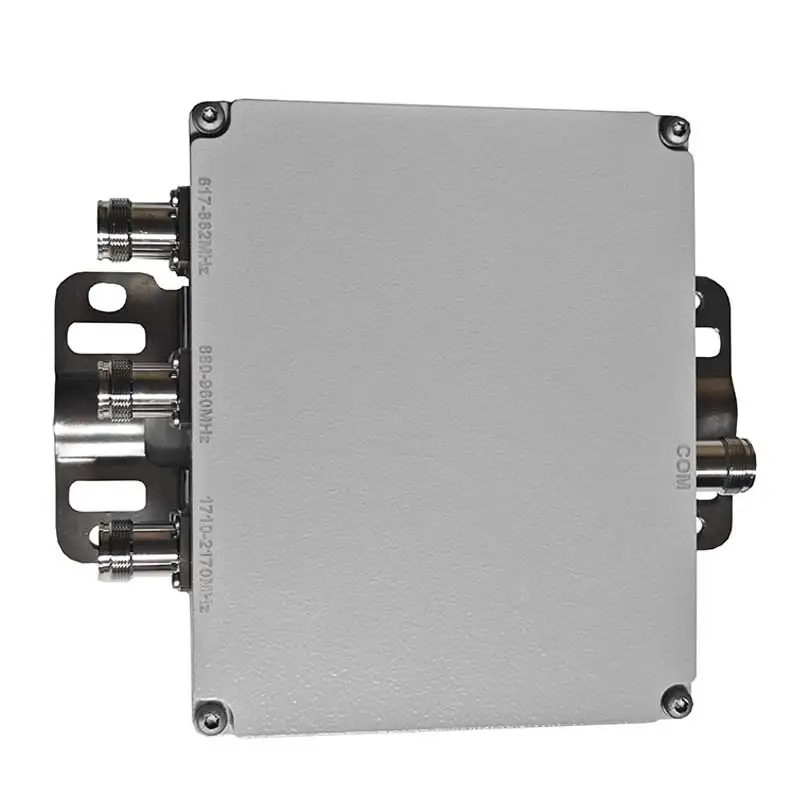

AMPLITEC CM0621-3D-B Combiner for 617 & 900 and 2170MHz Low loss
* Low VSWR & Insertion Loss
* High Out of Band Rejection
|
Model |
CM0621-3D-B |
||
|
Technical Specifications |
|||
|
Port |
Port1 |
Port2 |
Port3 |
|
Frequency Rang(MHz) |
617 - 862 |
880 - 960 |
1710 - 2170 |
|
VSWR |
≤1.25 |
||
|
Insertion Loss |
≤0.5dB |
||
|
Ripple in Band |
≤0.6dB |
||
|
Out of Band Rejection |
≥52dB |
≥52dB |
≥52dB |
|
PIM |
≤-160dBc (43dBm×2) |
||
|
Power Rating |
Continuous: ≥200W Peak: ≥500W |
||
|
RF connector |
4.3-10 Female |
||
|
Operating Temperature |
-25℃～+65℃ |
||
|
Humidity |
≤95％ |
||
|
Environment Condition |
Indoor or outdoor (IP67) |
||
|
Dimension(without connector)(mm) |
192.5x158x56 |
||
|
Weight(kg) |
≤ 5 |
||
* Low VSWR & Insertion Loss
* High Out of Band Rejection
