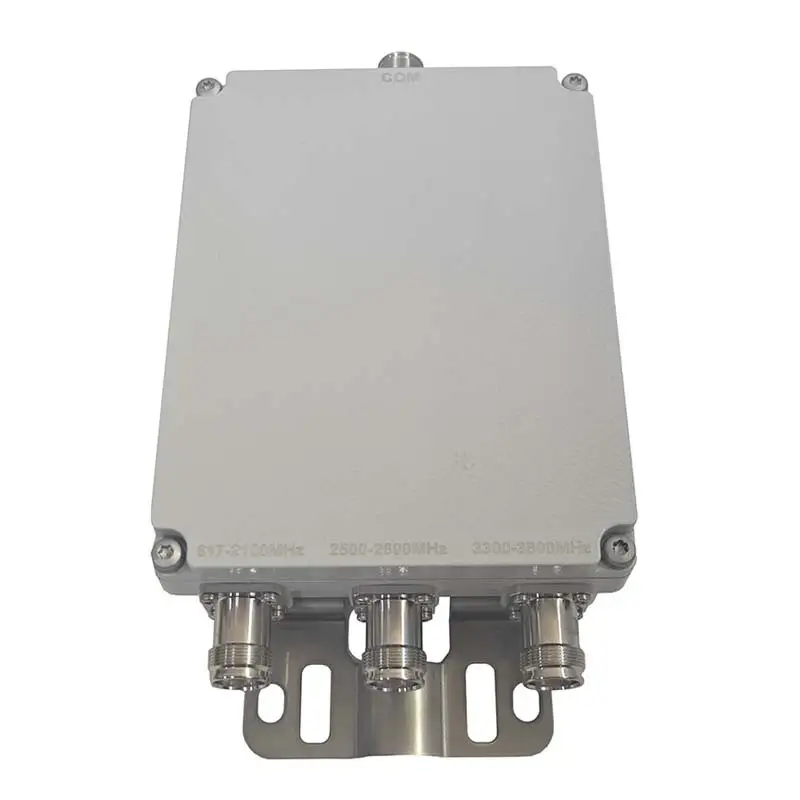

AMPLITEC CM0638-3D-B Combiner for 617、2100 & 2500 and 3800MHz Low loss 1
AMPLITEC CM0638-3D-B Combiner for 617、2100 & 2500 and 3800MHz Low loss 2
AMPLITEC CM0638-3D-B Combiner for 617、2100 & 2500 and 3800MHz Low loss 1
AMPLITEC CM0638-3D-B Combiner for 617、2100 & 2500 and 3800MHz Low loss 2

AMPLITEC CM0638-3D-B Combiner for 617、2100 & 2500 and 3800MHz Low loss

* Low VSWR & Insertion Loss

* High Out of Band Rejection

    oops...!

    no product data.

    Go to homepage

    AMPLITEC CM0638-3D-B Combiner for 617、2100 & 2500 and 3800MHz Low loss 3



    Model

    CM0638-3D-B

    Technical Specifications

    Port

    Port1

    Port2

    Port3

    Frequency Rang(MHz)

    617 - 2170

    2500 - 2690

    3300 - 3800

    VSWR

    ≤1.25

    Insertion Loss

    Type ≤0.2   Max.≤0.3

    Ripple in Band

    1.0dB

    Out of Band Rejection

    50dB

    50dB

    50dB

    PIM

    ≤-160dBc (43dBm×2)

    Power Rating

    Continuous: ≥200W  Peak: ≥500W

    RF connector

    4.3-10 Female

    Operating Temperature

    -25℃+65℃

    Humidity

    ≤95

    Environment Condition

    Indoor or outdoor (IP66)

    Dimension(without connector)(mm)

    188x145x45

    Weight(kg)

    ≤ 4.5


    * Low VSWR & Insertion Loss

    * High Out of Band Rejection
