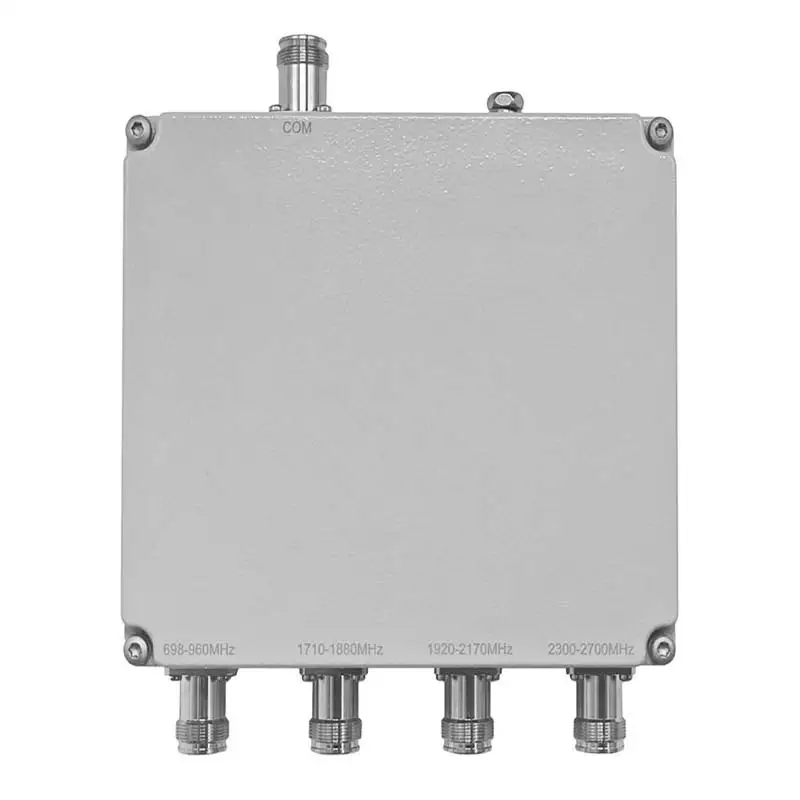

AMPLITEC CM0727-4D-B Combiner for 900 & 1800 and 2100 & 2700 MHz Low loss
* Low VSWR & Insertion Loss
* High Out of Band Rejection
|
Model |
CM0727-4D-B |
|||
|
Technical Specifications |
||||
|
Port |
Port1 |
Port2 |
Port3 |
Port4 |
|
Frequency Rang(MHz) |
698 - 960 |
1710 - 1880 |
1920 - 2170 |
2300 - 2700 |
|
VSWR |
≤1.3 |
|||
|
Insertion Loss |
≤0.7 |
|||
|
Out of Band Rejection |
≥50dB |
≥50dB |
≥50dB |
≥50dB |
|
PIM |
≤-160dBc (43dBm×2) |
|||
|
Power Rating |
Continuous: ≥300W Peak: ≥1000W |
|||
|
RF connector |
4.3-10 Female |
|||
|
Operating Temperature |
-25℃～+65℃ |
|||
|
Humidity |
≤95％ |
|||
|
Environment Condition |
Indoor or outdoor (IP66) |
|||
|
Dimension(without connector)(mm) |
238x208x48 |
|||
|
Weight(kg) |
≤ 6 |
|||
* Low VSWR & Insertion Loss
* High Out of Band Rejection
