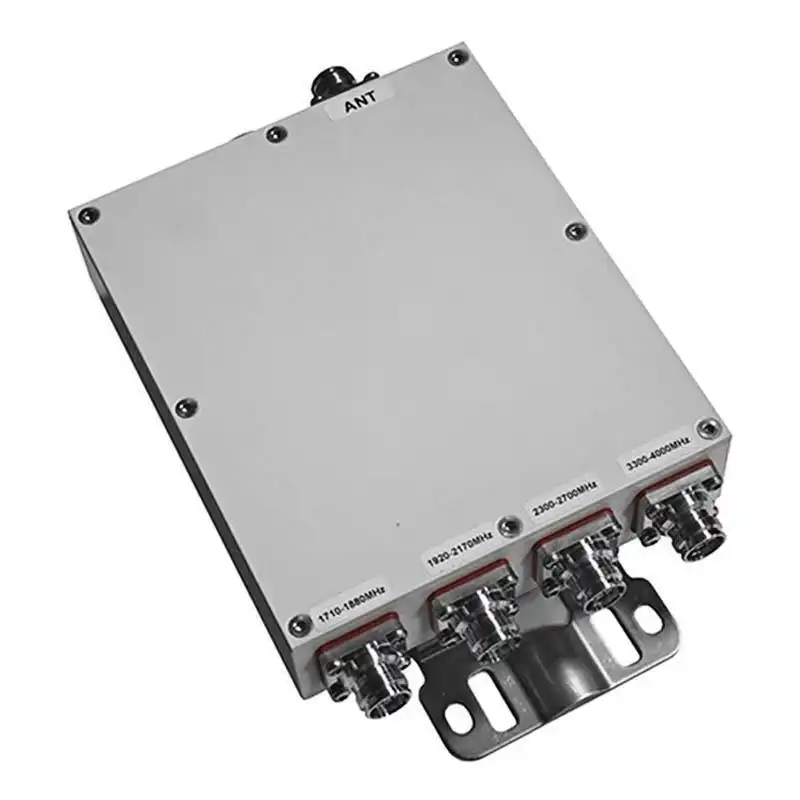

AMPLITEC CM1738-4D-B Combiner for 1800 & 2100 and 2700 & 3800 MHz Low loss
* Low VSWR & Insertion Loss
* High Out of Band Rejection
|
Model |
CM1738-4D-B |
|||
|
Technical Specifications |
||||
|
Port |
Port1 |
Port2 |
Port3 |
Port4 |
|
Frequency Rang(MHz) |
1710 - 1880 |
1920 - 2200 |
2500 - 2690 |
3300 - 3800 |
|
VSWR |
≤1.3 |
|||
|
Insertion Loss |
≤0.5 |
|||
|
Out of Band Rejection |
≥50dB |
≥50dB |
≥50dB |
≥50dB |
|
PIM |
≤-160dBc (43dBm×2) |
|||
|
Power Rating |
Continuous: ≥200W Peak: ≥500W |
|||
|
RF connector |
4.3-10 Female |
|||
|
Operating Temperature |
-25℃～+65℃ |
|||
|
Humidity |
≤95％ |
|||
|
Environment Condition |
Indoor or outdoor (IP66) |
|||
|
Dimension(without connector)(mm) |
213x180x50 |
|||
|
Weight(kg) |
≤ 5 |
|||
* Low VSWR & Insertion Loss
* High Out of Band Rejection
