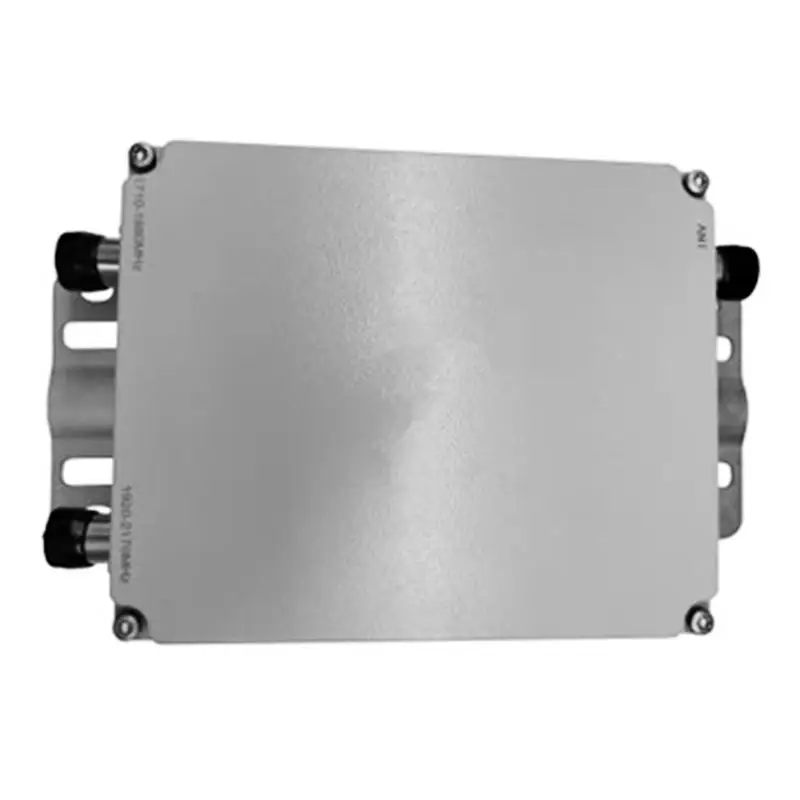

AMPLITEC CM1721-2D-B Combiner for 1800 & 2100 MHz Low loss
* Low VSWR & Insertion Loss
* High Out of Band Rejection
|
Model |
CM1721-2D-B |
|
|
Technical Specifications |
||
|
Port |
Port1 |
Port2 |
|
Frequency Rang(MHz) |
1710 - 1880 |
1920 - 2170 |
|
VSWR |
≤1.25 |
|
|
Insertion Loss |
≤0.5 |
|
|
Out of Band Rejection |
≥60dB |
≥60dB |
|
PIM |
≤-160dBc (43dBm×2) |
|
|
Power Rating |
Continuous: ≥300W Peak: ≥1500W |
|
|
Lightning protection |
10KA；8/20us pulse |
|
|
RF connector |
DIN - Female |
|
|
Operating Temperature |
-25℃～+65℃ |
|
|
Humidity |
≤95％ |
|
|
Environment Condition |
Indoor or outdoor (IP66) |
|
|
Dimension(without connector)(mm) |
201x164x52 |
|
|
Weight(kg) |
≤ 4 |
|
* Low VSWR & Insertion Loss
* High Out of Band Rejection
