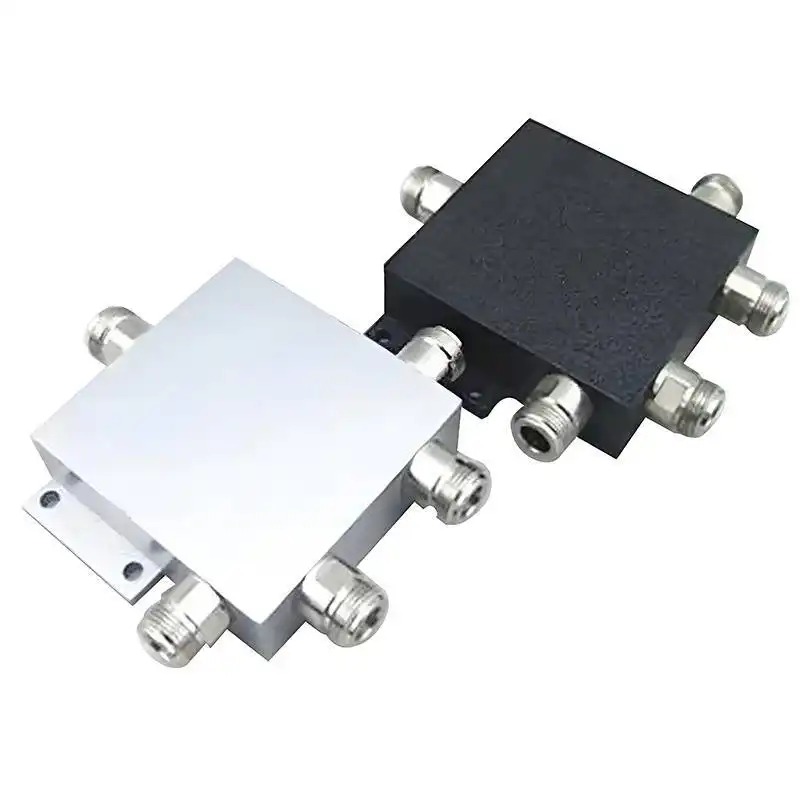

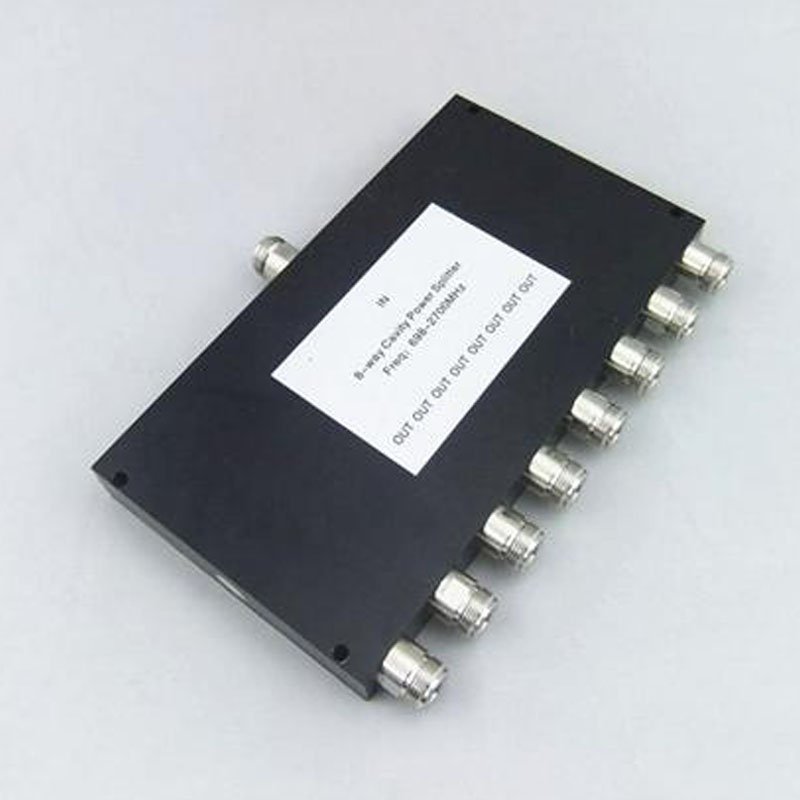

AMPLITEC Microstrip Splitter (698-2700MHz) Low loss
* Wide Frequency Band
* Low Insertion Loss
* Low VSWR
* High Isolation
* Widely used in IBS & DAS
* Guaranteed one year standard
|
Model Number |
SN50-2N-0627 |
SN50-3N-0627 |
SN50-4N-0627 |
SN50-6N-0627 |
SN50-8N-0627 |
|
Frequency Band (MHz) |
698-2700 |
||||
|
Input Ports |
2-way |
3-way |
4-way |
6-way |
8-way |
|
Split Loss(dB) |
3.0 |
4.8 |
6.0 |
7.8 |
9.0 |
|
Insertion Loss(dB) |
≦0.5 |
≦0.6 |
≦0.6 |
≦1.1 |
≦1.2 |
|
Isolation(dB) |
≧20 |
≧19 |
≧18 |
≧18 |
≧16 |
|
VSWR |
≦1.30 |
≦1.30 |
≦1.30 |
≦1.35 |
≦1.35 |
|
Average Power(W) |
50 |
||||
|
PIM(dBc) |
-150dBc@2*43dBm |
||||
|
RF Connector |
N-female |
||||
|
Working Temperature(deg) |
-35~+65 |
||||
|
Relative Humidity |
5%-95% |
||||
|
Application |
Indoor |
||||
|
Color |
Black-plated |
||||
|
Weight(kg) |
0.27 |
0.35 |
0.47 |
1.10 |
1.20 |
* Wide Frequency Band
* Low Insertion Loss
* Low VSWR
* High Isolation
* Widely used in IBS & DAS
* Guaranteed one year standard
