Best Dual Band Repeater - - Amplitec

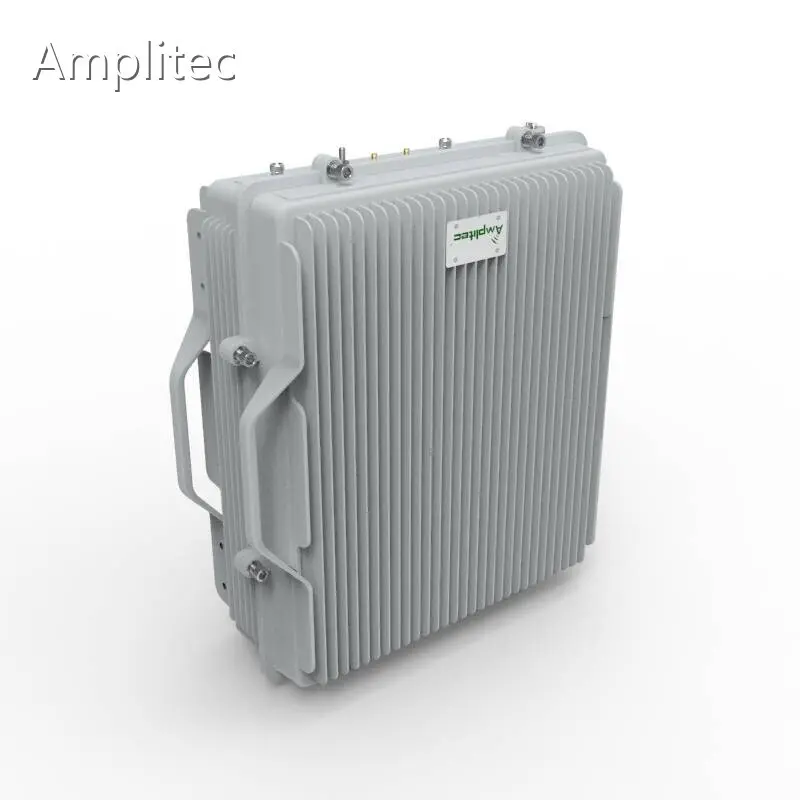

Product details of the best dual band repeater
Product Introduction
Amplitec best dual band repeater is made from imported materials with superior performance. The product has the quality that has been recognized by many international certificates. Foshan Amplitec Tech Development Co.,Ltd's sales network is extensive.
*Amplitec handle many engineering cases around the world,we have rich experience in mobile phone signal coverage project.
*Amplitec Own Chinese the largest signal booster manufacturing factory, so our quality control and production capacity leading the world.
*Most of Amplitec's signal booster have certificates,such as CE, RoHS, FCC, etc...
*Amplitec have rich exhibition experience, our signal boosters are recognized in many regions around the world.
-Do You Know Digital Band Selective Repeater?
-Digital Band Selective Repeater adopts digital filtering technology, uses A/D circuit to convert radio frequency signal into digital signal, and then uses programmable FPGA chip to run algorithm software to edit digital signal. One frequency band signal can be edited into multiple subbands, and then digital The signal is converted into a radio frequency signal, and each subband processed by digital filtering has good out-of-band suppression performance and will not interfere with each other. Therefore, installing a Digital Band Selective Repeater can simultaneously support the networks of multiple operators in the same frequency band.
-In addition, the equipment maintenance engineer can operate the monitoring software to turn on or turn off any subband of the Digital Band Selective Repeater, and can also flexibly set bandwidth and frequency of any sub-band , and choose to support the network of a certain operator or multiple operators.
-Recommended repeater antennas accessories full sets including:
Company Feature
• Amplitec has a research and development team consisting of professional technical developers. We develop and design products with innovative research and development concepts to ensure that every step of the product from design, development to production is professional and efficient.
• Amplitec is located at the intersection of different highways. The great geographic location, traffic convenience, and easy distribution make it an ideal place for the sustainable development of the enterprise.
• Amplitec runs a high-quality logistics management system to achieve efficient transportation of products. Besides, we run a comprehensive pre-sales, sales and after-sales service system to solve various problems in time for customers.
Welcome to Amplitec. If you have any questions about the jewelry, feel free to leave a message or contact us!
Model | S33T-Bx S33T-BxBx S33T-BxBxBx |
Frequency Band
| Any one in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ S33T-Bx Any two in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ S33T-BxBx Any three in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ S33T-BxBxBx |
Sub-bands | 1~3 for each band |
Bandwidth | 0.2 ~ 20 MHz can by set for each sub-band |
Gain | UL 80dB , DL 85dB |
Output Power | UL 23dBm, DL 33dBm |
Gain Attenuate | 1~31dB, Step of 1dB |
ALC Control Range | ≥30dB |
VSWR | ≤2.0 |
Spurious Emission | ≤-36dBm @ 9KHz~1GHz ≤-30dBm @ 1GHz~12.75GHz |
ACRR | Fully comply with 3GPP |
EVM | Fully comply with 3GPP |
PCDE | Fully comply with 3GPP |
Out of band Gain | Fully comply with 3GPP |
Noise Figure | ≤6dB @ S33T-Bx ≤8dB @ S33T-BxBx, @ S33T-BxBxBx |
Group Delay | ≤13μs |
Power Supply | DC 27V 5A @ S33T-Bx AC 100~264V / 50Hz @ S33T-BxBx, @ S33T-BxBxBx |
Dimension | 330x268x58mm @ S33T-Bx 370x332x137mm @ S33T-BxBx 490x410x210mm @ S33T-BxBxBx |
Weight
| <4.5kg @ S33T-Bx <15kg @ S33T-BxBx <28kg @ S33T-BxBxBx |
Note：The letter "x" means the 3gpp 4G band number: 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 | |
* 99% pass customs clearance,Amplitec have many certificates,such as CE,RoHS,FCC,etc...
* 100% solve mobile cell phone weak signal problem. Easy to cover over 3000-6000 m2 and easy to install.
* Sub-band frequency and bandwidth can be set by local monitoring panel, which is easier and more convenient
* Digital filter technology makes out-of-band rejection more effective
* OLED screen can clearly display working frequency, gain, output power and easily check working status of the device
* Manual gain control function, to attenuate gain with 1dB step among range of 31dB
* ALC, with wide range of 31dB, auto limit the output power to ensure stable performance.
* Device auto detect isolation after start-up, to avoid self-oscillation.
* Can be controlled and monitored, via USB connects PC for local control, via 3G or4G modem connects PC for remote control.
