Specialize in Signal Repeater & Jammer R&D and manufacturing since 2006
Cell Phone Signal Boster - - Amplitec
Company Advantages
· Amplitec cell phone signal boster is manufactured using quality proven materials.
· Effective QC system is carried out through the production of the product to ensure the consistent quality.
· After years of exploration and practice, Foshan Amplitec Tech Development Co.,Ltd has established perfect quality control system.
Company Features
· The focus of manufacturing cell phone signal boster has helped Amplitec become a notable company.
· Foshan Amplitec Tech Development Co.,Ltd has made a modern manufacturing line with strict, serious and sincere attitude. In Foshan Amplitec Tech Development Co.,Ltd, QC rigorously implements all the aspect of production phases from prototype to finished product. Foshan Amplitec Tech Development Co.,Ltd has introduced sizable set of cell phone signal boster manufacturing machines.
· Tell us your requirements, and Amplitec gives you the most professional solution. Please contact.

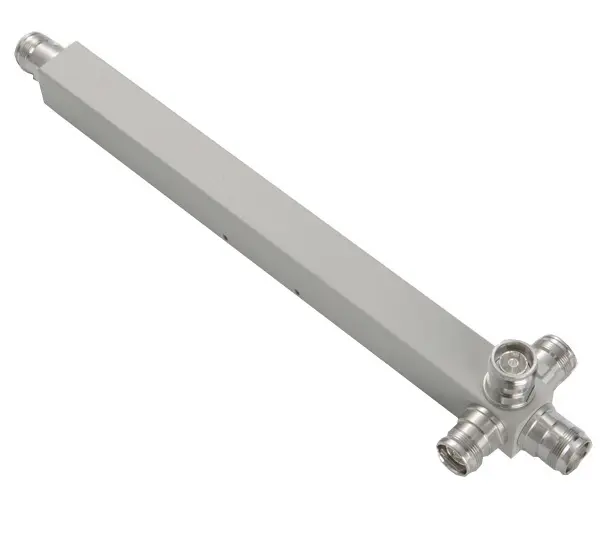

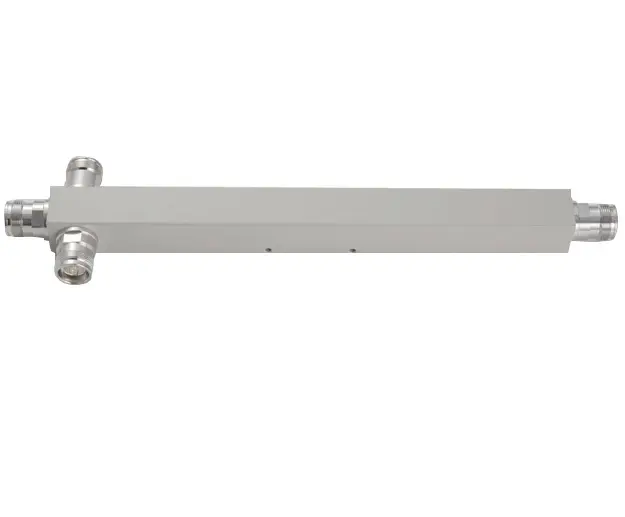

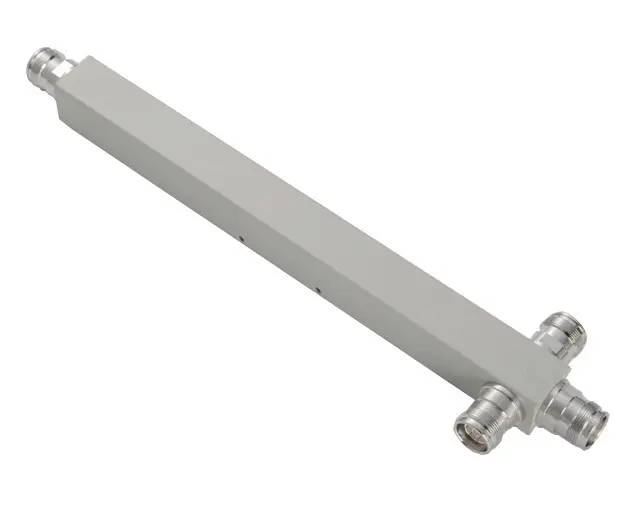

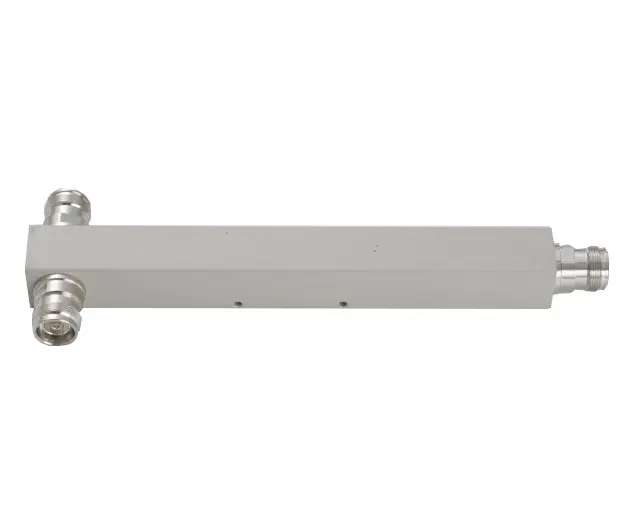

Product Details
Amplitec will present you cell phone signal boster's details in the following section.
Model | SP0660-2D-B | SP0660-3D-B | SP0660-4D-B |
Frequency Band (MHz) | 550 ~ 6000 | 550 ~ 6000 | 550 ~ 6000 |
Input Port | 1 | 1 | 1 |
Output Ports | 2 | 3 | 4 |
Split Loss(dB) | ≤ 3.6 | ≤ 5.5 | ≤ 6.8 |
Insertion Loss (dB) | ≤ 0.4 | ≤ 0.5 | ≤ 0.6 |
VSWR | ≤ 1.3 | ≤ 1.3 | ≤ 1.3 |
PIM (dBc) @2*43dBm | ≤ -150 | ≤ -150 | ≤ -150 |
Average Power(W) | 500 | 500 | 500 |
RF Connector | 3 x 4.3-10-Female | 4 x 4.3-10-Female | 5 x 4.3-10-Female |
Working Temperature (℃) | -40 to +80 | -40 to +80 | -40 to +80 |
Relative Humidity | ≤95 | ≤95 | ≤95 |
Impedance (Ω) | 50 | 50 | 50 |
Environmental Conditions | IP65 | IP65 | IP65 |
Color | Gray or customized based on requirements | ||
Dimension(without connector)(mm) | 218x25x25 | 269x25x25 | 262x25x25 |
Weight(kg) | ≤ 0.25 | ≤ 0.35 | ≤ 0.45 |
* Wide Frequency Band
* Low Insertion Loss
* Low VSWR
* High Isolation
* Low PIM
