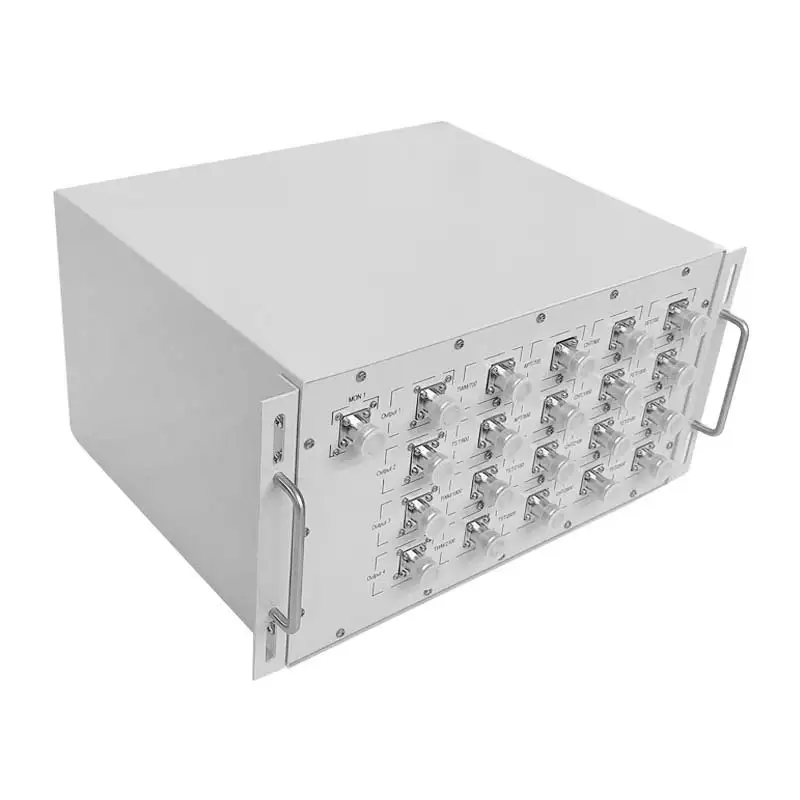

AMPLITEC POI PM0727-164D-B Low loss
* High Performance and high reliability with up to 16 inputs combined into up to 4 outputs.
* Very cost effective antenna sharing solution for Indoor/Outdoor applications.
* High power BTS conditioning 150 watts per port.
* Very Low Passive Inter-Modulation (PIM).
* Extremely low Insertion loss.
|
Input Port Information (MHz) |
B28 700 |
Port 1 |
703-748/758-803 |
|
Port 2 |
703-748/758-803 |
||
|
Port 3 |
703-748/758-803 |
||
|
B8 900 |
Port 1 |
885-915/925-960 |
|
|
Port 2 |
885-915/925-960 |
||
|
Port 3 |
885-915/925-960 |
||
|
B3 1800 |
Port 1 |
1710-1785/1805-1880 |
|
|
Port 2 |
1710-1785/1805-1880 |
||
|
Port 3 |
1710-1785/1805-1880 |
||
|
B1 2100 |
Port 1 |
1920-1980/2110-2170 |
|
|
Port 2 |
1920-1980/2110-2170 |
||
|
Port 3 |
1920-1980/2110-2170 |
||
|
Port 4 |
1920-1980/2110-2170 |
||
|
B7 2600 |
Port 1 |
2500-2570/2620-2690 |
|
|
Port 2 |
2500-2570/2620-2690 |
||
|
Port 3 |
2500-2570/2620-2690 |
||
|
Isolation Loss (dB) |
≤ 8.5 |
||
|
Isolation Between Input Ports of (dB) |
Same Bands ≥25 |
||
|
Different Bands ≥80 |
|||
|
Monitor Port Coupling Value (dB) |
30±3 |
||
|
Return Loss / VSWR |
≥ 18dB / ≤ 1.3 |
||
|
Intermodulation (dBc) @2x43dBm |
≤ -150 |
||
|
Impedance (Ω) |
50 |
||
|
Input Power Rating Per Port (W) |
150 |
||
Mechanical Specifications
|
Dimensions, LxWxH (mm) (excluding connectors & mounting bracket) |
TBD |
|
|
Weight (kg) |
TBD |
|
|
Shipping Dimensions, LxWxH (mm) |
-- |
|
|
Shipping Weight (kg) |
-- |
|
|
RF Connectors |
Input Ports |
16x 4.3-10-Female |
|
Output Ports |
4x 4.3-10-Female |
|
|
Monitoring Ports |
1x 4.3-10-Female |
|
|
Mounting Type |
19”Rack or Floor Stand for Top Side Ports or Wall Mount |
|
|
Operating Temperature Range (°C) |
-10 to +55 |
|
|
Operational Humidity (%) |
≤ 95 |
|
|
Environmental Class |
Indoor (IP40) |
|
* High Performance and high reliability with up to 16 inputs combined into up to 4 outputs.
* Very cost effective antenna sharing solution for Indoor/Outdoor applications.
* High power BTS conditioning 150 watts per port.
* Very Low Passive Inter-Modulation (PIM).
* Extremely low Insertion loss.
