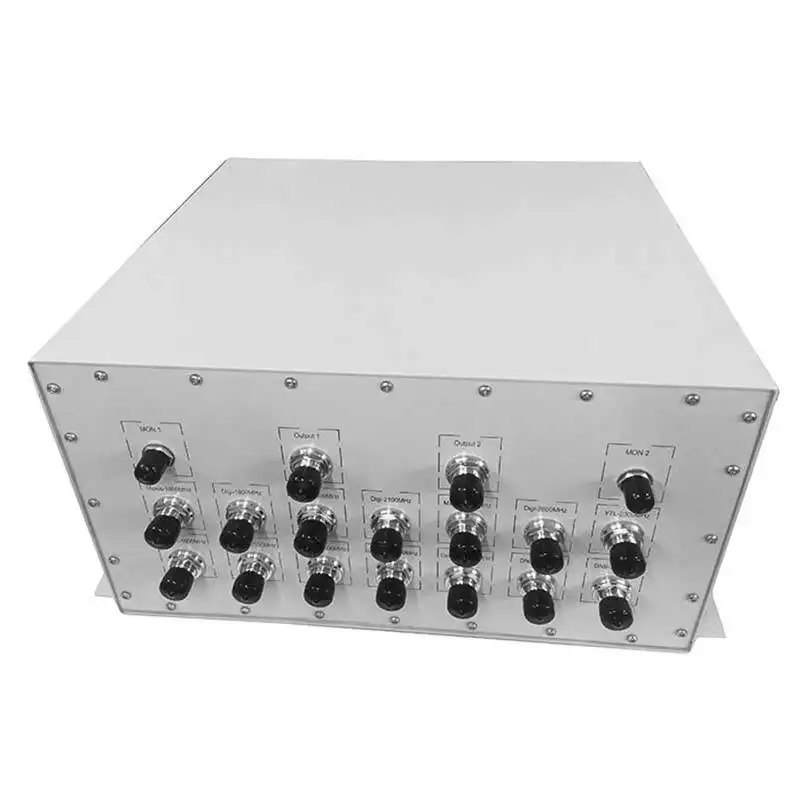

AMPLITEC POI PM0735-142D-B
* High Performance and high reliability with up to 14 inputs combined into up to 2 outputs.
* Very cost effective antenna sharing solution for Indoor/Outdoor applications.
* High power BTS conditioning 200 watts per port.
* Very Low Passive Inter-Modulation (PIM).
* Extremely low Insertion loss.
|
Input Port Information (MHz) |
B28 700 |
DNB |
703-743/758-798 |
|
B3 1800 |
Maxis |
1710-1730/1805-1825 |
|
|
Celcom |
1745-1765/1840-1860 |
||
|
Digi |
17651785/1860-1880 |
||
|
B1 2100 |
Maxis |
1935-1950/2125-2140 |
|
|
Celcom |
1950-1965/2140-2155 |
||
|
Digi |
1935-1980/2155-2170 |
||
|
U Mobile |
1920-1935/2110-2125 |
||
|
B41 2600 |
Maxis |
2500-2520/2500-2520 |
|
|
Celcom |
2530-2550/2530-2550 |
||
|
Digi |
2550-2570/2550-2570 |
||
|
U Mobile |
2520-2530/2520-2530 |
||
|
B39 2300 |
YTL |
2330-2360/2330-2360 |
|
|
N78 3500 |
DNB |
3400-3500/3400-3500 |
|
|
Isolation Loss (dB) |
≤ 6.0 |
||
|
Isolation Between Input Ports of (dB) |
Same Bands ≥30 |
||
|
Different Bands ≥90 |
|||
|
Monitor Port Coupling Value (dB) |
30±3 |
||
|
Return Loss / VSWR |
≥ 18dB / ≤ 1.3 |
||
|
Intermodulation (dBc) @2x43dBm |
≤ -150 |
||
|
Impedance (Ω) |
50 |
||
|
Input Power Rating Per Port (W) |
200 |
||
Mechanical Specifications
|
Dimensions, LxWxH (mm) (excluding connectors & mounting bracket) |
450 x 420 x 245 |
|
|
Weight (kg) |
20 |
|
|
Shipping Dimensions, LxWxH (mm) |
-- |
|
|
Shipping Weight (kg) |
-- |
|
|
RF Connectors |
Input Ports |
14x 4.3-10-Female |
|
Output Ports |
2x 4.3-10-Female |
|
|
Monitoring Ports |
2x N-Female |
|
|
Mounting Type |
Wall Mount |
|
|
Operating Temperature Range (°C) |
-20 to +65 |
|
|
Operational Humidity (%) |
≤ 95 |
|
|
Environmental Class |
Indoor or Outdoor (IP65) |
|
* High Performance and high reliability with up to 14 inputs combined into up to 2 outputs.
* Very cost effective antenna sharing solution for Indoor/Outdoor applications.
* High power BTS conditioning 200 watts per port.
* Very Low Passive Inter-Modulation (PIM).
* Extremely low Insertion loss.
