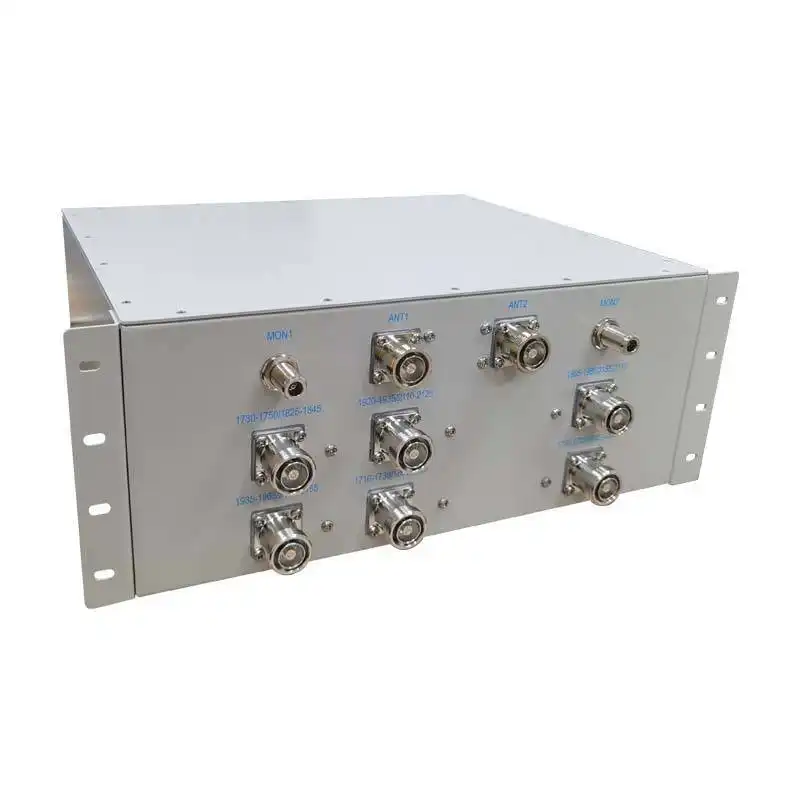

AMPLITEC POI PM1721-62D-B Low loss

High Performance and high reliability with up to 14 inputs  combined  into up to 2 outputs.

Very cost effective antenna sharing solution for Indoor/Outdoor applications.

High power BTS conditioning 200 watts per port.

Very Low Passive Inter-Modulation (PIM).

    oops...!

    no product data.

    Go to homepage

    Input Port Information (MHz)

    B3 1800

    Port 1

    1710-1730/1805-1825

    Port 2

    1730-1750/1825-1845

    Port 3

    1750-1785/1845-1880

    B1 2100

    Port 1

    1920-1935/2110-2125

    Port 2

    1935-1965/2125-2155

    Port 3

    1965-1980/2155-2170

    lnsertion Loss (dB)

    ≤0.5

    Isolation Between Bands(dB)

    ≥25

    lsolation Cross Bands(dB)

    ≥80

    Return Loss (dB)

    ≥18

    Maximum Input Per Power (W)

    100

    Intermodulation Products (dBc)

    ≤-150@2x43dBm

    Impedance (Ω)

    50



    Mechanical Specifications

    Dimensions, LxWxH (mm) / (in) (excluding connectors & mounting bracket)

    TBD

    Weight (kg) / (lb)

    TBD

    Shipping Dimensions, LxWxH (mm) / (in)

    TBD

    Shipping Weight (kg) / (lb)

    TBD

    RF Connectors

    Input Ports

    6x 7/16” DIN-Female

    Output Ports

    2x 7/16” DIN-Female

    Monitoring Ports

    2x N-Female

    Mounting

    19”Rack

    Operating Temperature Range (°C)

    -10 to +60

    Operational Humidity (%)

    < 95

    Environmental Class

    Indoor


    High Performance and high reliability with up to 14 inputs  combined  into up to 2 outputs.

    Very cost effective antenna sharing solution for Indoor/Outdoor applications.

    High power BTS conditioning 200 watts per port.

    Very Low Passive Inter-Modulation (PIM).
