AMPLITEC RF filter ultra-low insertion loss anti-interference capability Low loss 1
AMPLITEC RF filter ultra-low insertion loss anti-interference capability Low loss 1

AMPLITEC RF filter ultra-low insertion loss anti-interference capability Low loss

RF Filter



Radio frequency filter, also known as "radio frequency interference filter", is mainly used in high-frequency electronic equipment to attenuate high-frequency interference signals generated by high-frequency electronic equipment.

With the rapid increase of the operating frequency of electronic equipment, the frequency of electromagnetic interference is also getting higher and higher, and the interference frequency usually reaches hundreds of MHz, or even above GHz. Because the higher the frequency of the voltage or current, the easier it is to generate radiation. It is these high-frequency interference signals that cause the problem of radiation interference to become increasingly serious. Therefore, there is an urgent need for a filter that can greatly attenuate the high-frequency signals of radiation interference. This filter is a radio frequency interference filter.

    oops...!

    no product data.

    Go to homepage

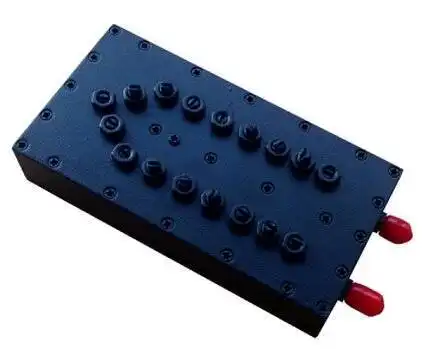

    RF Filter

    Model

    RF50-SMA-1821

    Frequency

    1880MHz~2170MHz

    Insertion Loss

    ≤0.8dB

    ≤1.2 dB(-40℃ ~ +85℃)

    Ripple

    ≤0.8 dB

    Return Loss

    ≥17.5dB

    Rejections

    ≥50dB@DC~1710MHz ≥38dB@1710~1790MHz

    ≥27dB@1790~1850MHz ≥5dB@1850~1860MHz

    ≥5dB@2190~2200MHz ≥27dB@2200~2260MHz

    ≥38dB@2260~2400MHz ≥38dB@2400~6000MHz

    Power

    50W

    Impedance

    50Ω

    Operation Temperature

    -40℃ ~ +85℃

    Connector

    SMA-Female

    Surface Color

    Black Paint

    Size Tolerance

    ±0.3mm

    filter



    Radio frequency filter, also known as "radio frequency interference filter", is mainly used in high-frequency electronic equipment to attenuate high-frequency interference signals generated by high-frequency electronic equipment.

    With the rapid increase of the operating frequency of electronic equipment, the frequency of electromagnetic interference is also getting higher and higher, and the interference frequency usually reaches hundreds of MHz, or even above GHz. Because the higher the frequency of the voltage or current, the easier it is to generate radiation. It is these high-frequency interference signals that cause the problem of radiation interference to become increasingly serious. Therefore, there is an urgent need for a filter that can greatly attenuate the high-frequency signals of radiation interference. This filter is a radio frequency interference filter.

    RF interference filter
