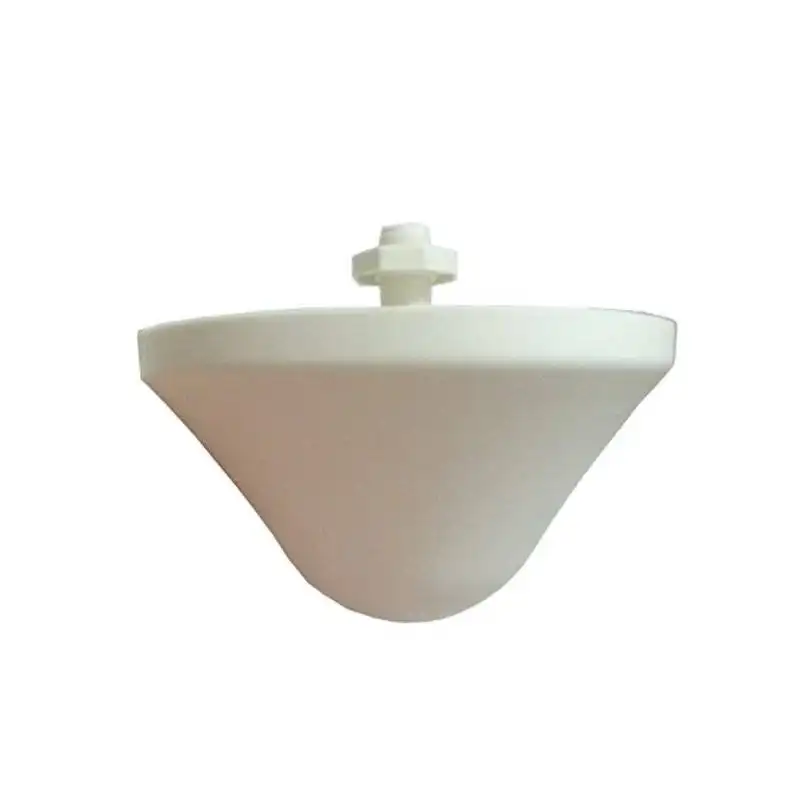

AMPLITEC Dual-Polarized Ceiling Antenna Low loss
* Elegant appearance, simple installation, stable performance.
* Good performance in anti-vibration and resistant to aging.
* Fit for installation for Aluminum ceiling and Gypsum Ceiling.
Model | IO8027-03360-2P | |
Frequency Range | 1880~2700-MHz | 806~960/1710~2700-MHz |
Bandwidth | 820MHz | 154/990MHz |
Gain | 4dBi | 2/3dBi |
Beamwidth | H:360° E:85/55° | H:360° V:55/45° |
Polarization | Horizontal | Vertical |
Intermodulation IM3 | ≤-107dBm (2×2W) | |
VSWR | ≤1.5 | |
Non-circularity | ±2dB | |
Isolation | ≥25dB | |
Max power | 50 W | |
Nominal Impedance | 50 Ω | |
Connector | 2xN female or customized | |
Antenna Dimension | Φ220 * 125 mm | |
Weight | 800g | |
Radiator Material | Aluminum | |
Radome Material | ABS | |
Radome Color | White | |
Mounting | Fixed with Nut | |
* Elegant appearance, simple installation, stable performance.
* Good performance in anti-vibration and resistant to aging.
* Fit for installation for Aluminum ceiling and Gypsum Ceiling.
