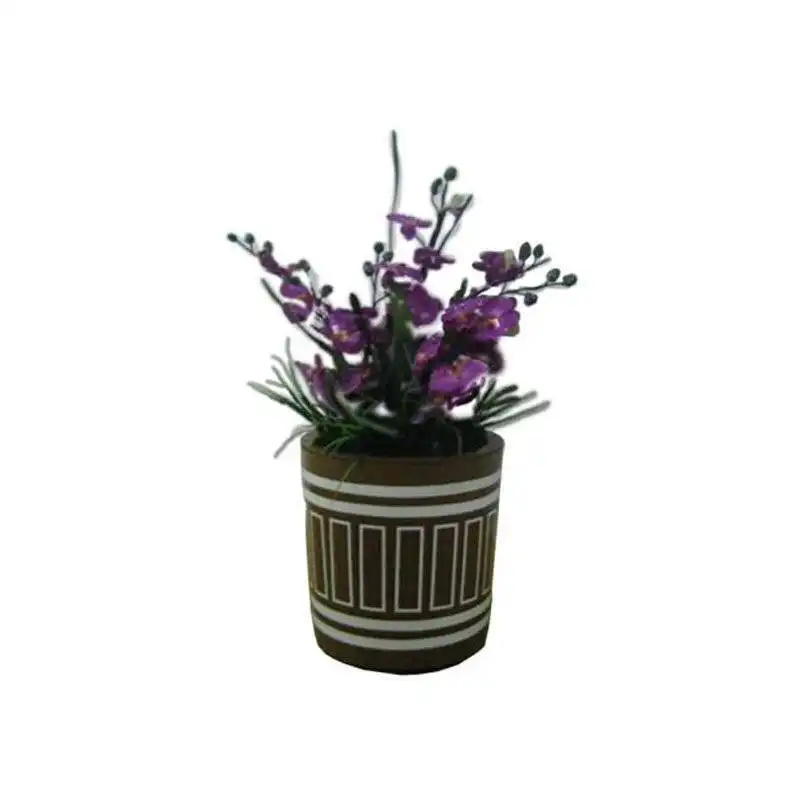

AMPLITEC Flower Disc Decoration Cell Phone Signal Antenna
* Wide band, high gain, stable performance.
* Elegant appearance, simple installation.
* Suitable for indoor coverage ,can be used for environmental decoration.
Fashionable appearance and compact size, light weight, not easy to be noticed; high gain; dual wide band, suitable for C, G, PHS and 3G network; low VSWR and high front-to-back ratio.
All-in-one structure, easy to install and maintain. Its appearance is customizable, suitable for office building, hotels and shopping malls etc.
|
Model No. |
CXT-ANT0-ZS01 |
|
Frequency Range |
824~960MHz |
|
Gain |
7~9dBi |
|
VSWR |
＜1.5 |
|
Polarization |
Vertical |
|
Horizontal beamwidth |
61°~68° 70°~110° |
|
Vertical beamwidth |
60°~72° 29°~68° |
|
Front to back ratio |
≥15dB |
|
Input Impedance |
50Ω |
|
Max Input Power |
50W |
|
Connector |
N Female Cable SFF-50-3-1 |
|
Lighting Protection |
Direct ground |
|
Isolation |
45dB |
|
Dimensions |
Φ360×380mm |
|
Weight |
10Kg |
|
Radiator Material |
Silver-plated Brass |
|
Radome Material |
Fiberglass |
|
Radome Color |
Multicolor |
* Wide band, high gain, stable performance.
* Elegant appearance, simple installation.
* Suitable for indoor coverage ,can be used for environmental decoration.
