Specialize in Signal Repeater & Jammer R&D and manufacturing since 2006
Cell Phone Repeater - - Amplitec

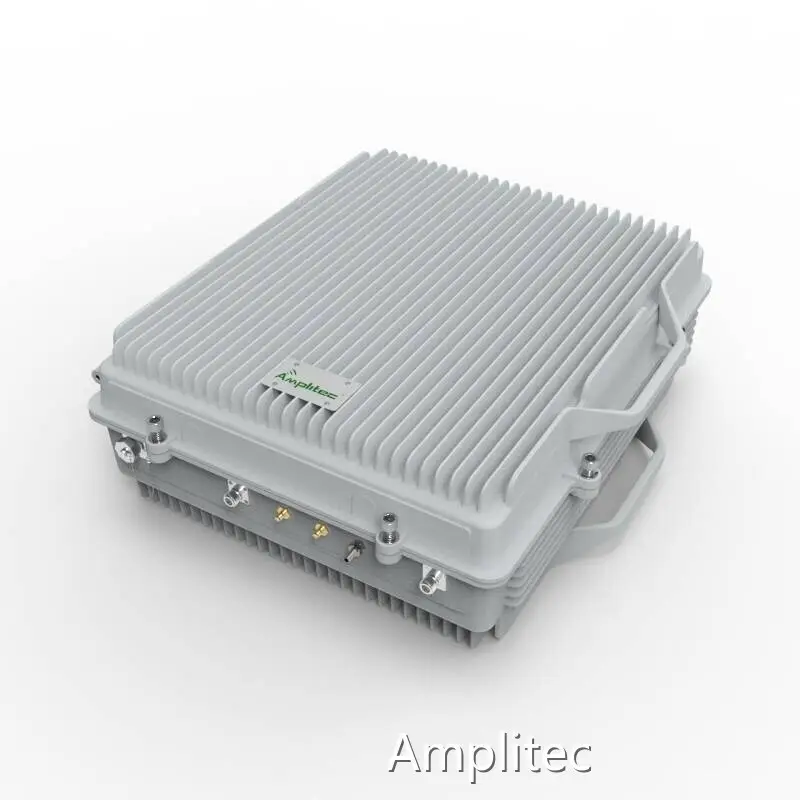

Product details of the cell phone repeater
Quick Overview
Amplitec cell phone repeater is manufactured by our competent workforce utilizing well-tested material and sophisticated technology following the set norms of the industry. cell phone repeater firstly take satisfying consumers' demand as aim. Our cell phone repeater meets the needs of multiple industries and fields. The product has significant economic benefits and a good application prospect.
Product Introduction
cell phone repeater's outstanding quality is shown in the details.
*Amplitec handle many engineering cases around the world,we have rich experience in mobile phone signal coverage project.
*Amplitec Own Chinese the largest signal booster manufacturing factory, so our quality control and production capacity leading the world.
*Most of Amplitec's signal booster have certificates,such as CE, RoHS, FCC, etc...
*Amplitec have rich exhibition experience, our signal boosters are recognized in many regions around the world.
Company Information
Located in Foshan Amplitec Tech Development Co.,Ltd is a company integrating R&D, production and sales. The products include Our company implements strict management on after-sales service of products. And it effectively improves the quality of after-sales service and enables every customer to enjoy the service right. We look forward to working with you to move towards a more brilliant era.
|
Model |
C37J-Bx C37J-BxBx C37J-BxBxBx |
|
Frequency Band |
Any one in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ C37J-Bx Any two in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ C37J-BxBx Any three in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ C37J-BxBxBx |
|
Bandwidth |
Full Bandwidth |
|
Gain |
UL 80dB , DL 85dB |
|
Output Power |
UL 24dBm, DL 37dBm |
|
Gain Attenuate |
1~31dB, Step of 1dB |
|
ALC Control Range |
≥30dB |
|
VSWR |
≤2.0 |
|
Spurious Emission |
≤-36dBm @ 9KHz~1GHz, ≤-30dBm @ 1GHz~12.75GHz |
|
ACRR |
Fully comply with 3GPP |
|
EVM |
Fully comply with 3GPP |
|
PCDE |
Fully comply with 3GPP |
|
Noise Figure |
≤6dB |
|
Group Delay |
≤1.5μs |
|
Power Supply |
AC 100 ~ 264 V/ 50Hz |
|
Dimension |
370*332*137mm @ C37J-Bx 490*410*210mm @ C37J-BxBx 490*410*210mm @ C37J-BxBxBx |
|
Weight |
<12kg @ C37J-Bx <28kg @ C37J-BxBx <30kg @ C37J-BxBxBx |
|
Note：The letter "x" means the 3gpp 4G band number: 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 |
|
* 99% pass customs clearance, Amplitec have many certificates, such as CE, RoHS, FCC, etc...
* 37dBm 85dB signal repeater indoor coverage area upto 6000-10000㎡, outdoor upto 2-5km and waterproof easy to install.
* OLED display for an easy glance of operating status, working frequency, gain and output power etc.
* For local control via USB connects PC ,convenient to check working frequency, UL or DL output power, temperature alarm and ALC alarm.
* ISO function, easy to set up for engineering, quickly installed and debugged.
* Able to enhance signal coverage, reduce cell phone radiation and extend cell phone battery working time.
* Digital ALC technology, auto limit the output power to ensure stable signal coverage.
* Uplink squelch function.
* Automatic link balancing function.
* Manual gain control, with 1dB step to attenuate the gain among the range of 31dB.
