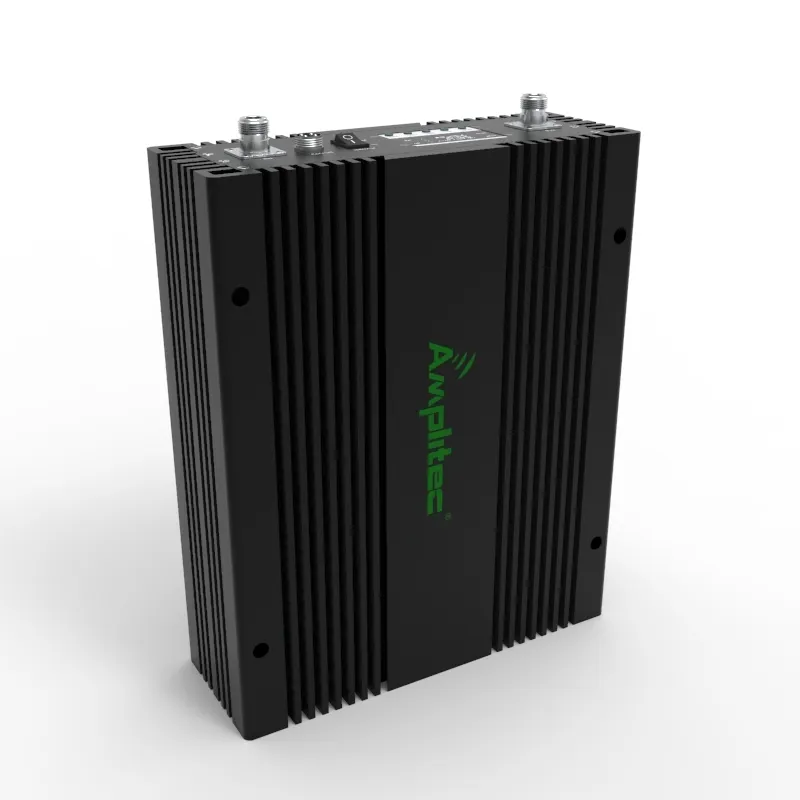

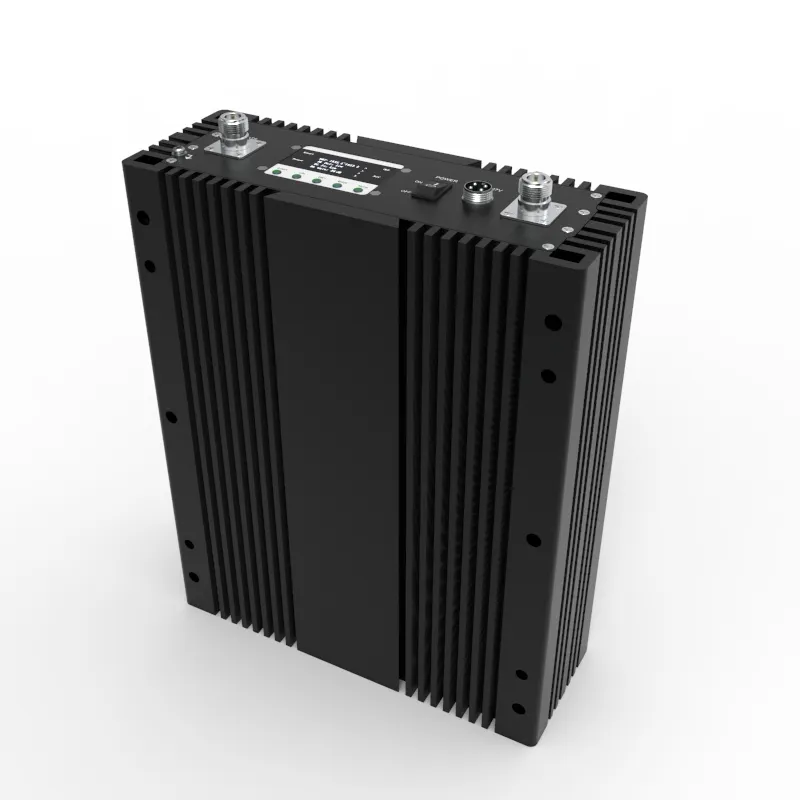

Mobile Wireless Dual Band Signal Booster by Amplitec
Company Advantages
· Amplitec mobile wireless dual band signal booster is manufactured exactly according to your specifications by using the most advanced technology and equipment.
· Different from other normal products, mobile wireless dual band signal booster enjoys a better quality with healthy materials.
· Foshan Amplitec Tech Development Co.,Ltd always provides maximum support to customers to achieve win-win collaboration.
* Amplitec handle many engineering cases around the world,we have rich experience in mobile phone signal coverage project.
* Amplitec Own Chinese the largest signal booster manufacturing factory, so our quality control and production capacity leading the world.
* Most of Amplitec's signal booster have certificates,such as CE, RoHS, FCC, etc...
* Can be controlled and monitored, via USB connects PC for local control, via 3G or4G modem connects PC for remote control.
* Amplitec have rich exhibition experience, our signal boosters are recognized in many regions around the world.
* Anti-interference,real time auto ISO detection and Self Oscillation Elimination keeping base station away from interference.
* Able to increase signal coverage,decrease mobile phone radiation,and increase mobile phone battery lifespan.
* Amplitec brand is wide used on many countrys of the world Such as Australia,United States,United Kingdom,Indonesia,Spain,Brazil,Kuwait,South Africa,Sweden,etc.
-Recommended repeater antennas accessories full sets including:
Company Features
· Foshan Amplitec Tech Development Co.,Ltd successfully grasps the trends to utilize advanced technology to produce the most popular mobile wireless dual band signal booster.
· The strong technical force and scientific management of Foshan Amplitec Tech Development Co.,Ltd have continuously refurbished the products and thus won the market. Foshan Amplitec Tech Development Co.,Ltd has a group of high-quality technical team.
· Amplitec has been appreciated by more customers for its high-quality mobile wireless dual band signal booster and considerate service.
Application of the Product
Amplitec's mobile wireless dual band signal booster can be used in different industries to meet the needs of customers.
With rich manufacturing experience and strong production strength, Amplitec is able to provide professional solutions according to customers' actual needs.
Model | F20T-Bx F20T-BxBx F20T-BxBxBx |
Frequency Band | Any one in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ F20T-Bx Any two in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ F20T-BxBx Any three in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ F20T-BxBxBx |
Bandwidth | 0.2~24MHz can be set |
Gain | UL 70dB , DL 70dB |
Output Power | UL 15dBm, DL 20dBm |
Gain Attenuate | 1~31dB, Step of 1dB |
ALC Control Range | ≥30dB |
VSWR | ≤2.0 |
Spurious Emission | ≤-36dBm @ 9KHz~1GHz ≤-30dBm @ 1GHz~12.75GHz |
ACRR | Fully comply with 3GPP |
EVM | Fully comply with 3GPP |
PCDE | Fully comply with 3GPP |
Out of band Gain | Fully comply with 3GPP |
Noise Figure | ≤6dB @ F20T-Bx ≤8dB @ F20T-BxBx, @ F20T-BxBxBx |
Group Delay | ≤9μs |
Power Supply | DC 12V3A @ F20T-Bx DC 12V5A @ F20T-BxBx, @ F20T-BxBxBx |
Dimension | 268x250x58mm @ F20T-Bx 268x220x96mm @ F20T-BxBx 330x268x96mm @ F20T-BxBxBx |
Weight | <3kg @ F20T-Bx <5kg @ F20T-BxBx <9kg @ F20T-BxBxBx |
Note：The letter "x" means the 3gpp 4G band number: 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 | |
* 99% pass customs clearance,Amplitec have many certificates,such as CE,RoHS,FCC,etc...
* 100% solve mobile cell phone weak signal problem.

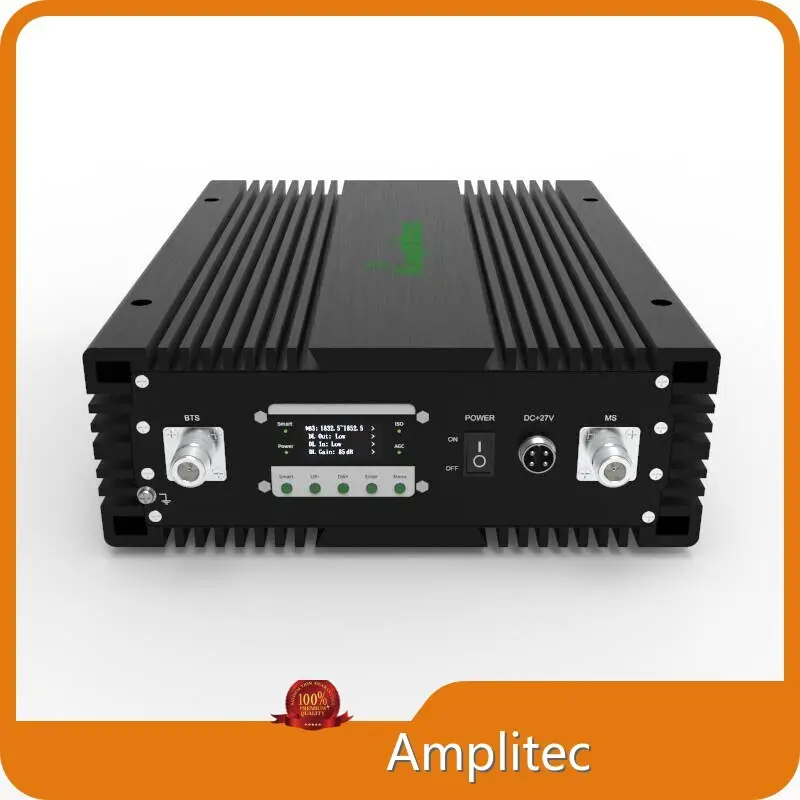

* OLED display of operating status at a glance, easy and convenient Push-button operation.
* Can be controlled and monitored, via USB connects PC for local control, via 3G or4G modem connects PC for remote control.
* Adjustable frequency and bandwidth.
* Support the uplink quiet noise function, low interference.
* Digital ALC, auto control of output power ensuring stable signal coverage.
* Anti-interference, real time auto ISO detection and Self Oscillation Elimination keeping base station away from interference.
* Manual gain attenuation, attenuation of gain in the range of 1-31dB with 1dB step.
